Use STILT PRO Processing equipment to automate bale processing, eliminating labor costs, saving time and providing a uniform mix. The simple controls of the STILT PRO Gobbler or Small Bale Buster will increase your productivity with minimal maintenance, and they may discharge directly into a STILT PRO Filler or Soil Conveyor.
STILT PRO Mixing Equipment offers rapid, complete and uniform mixing of your soil media. Our mixer capacities range from a small ¾ yard mixer to our large 4-yard mixer. Each utilizes a custom paddle auger design, which gently lifts and blends your media.

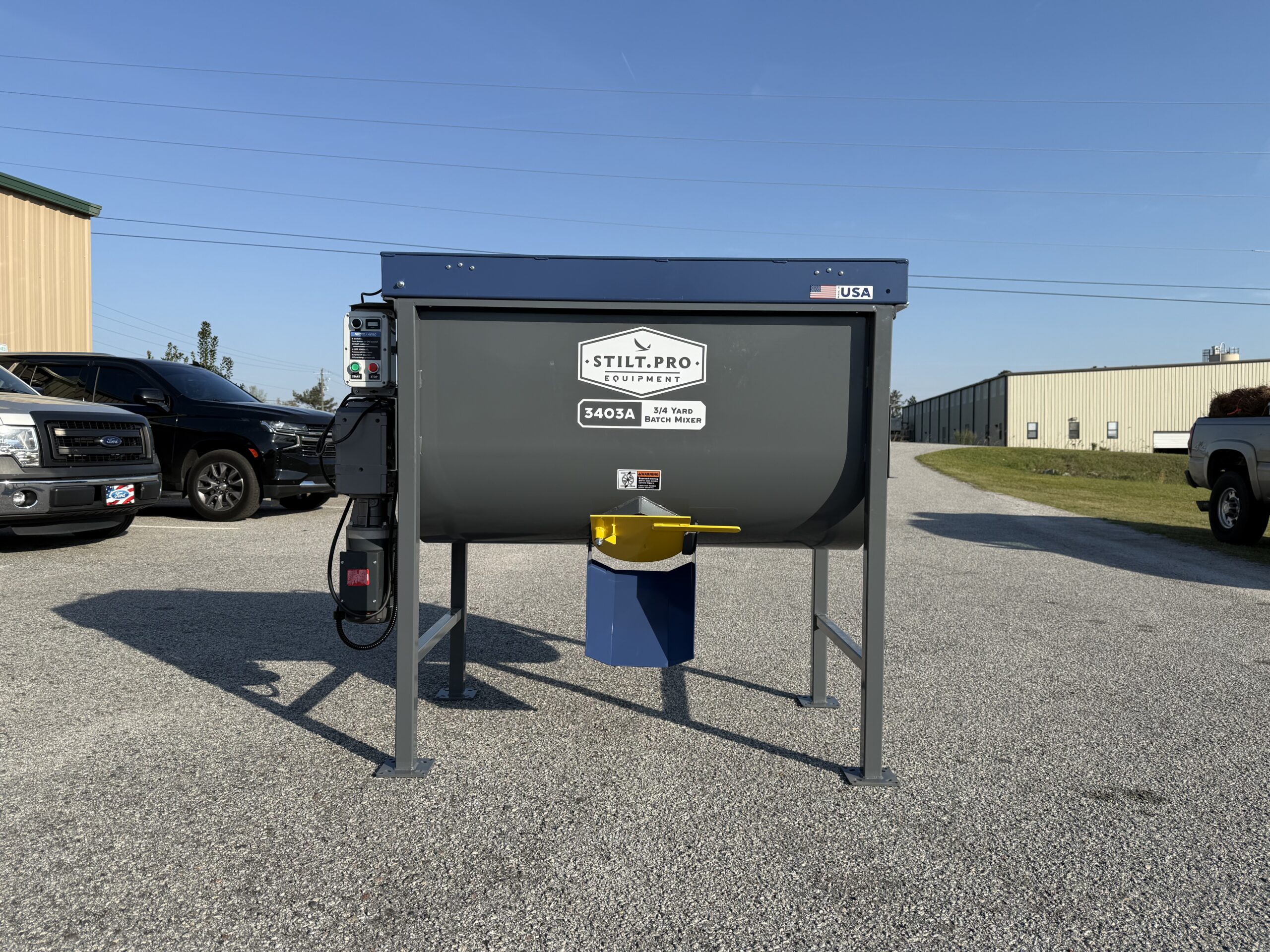

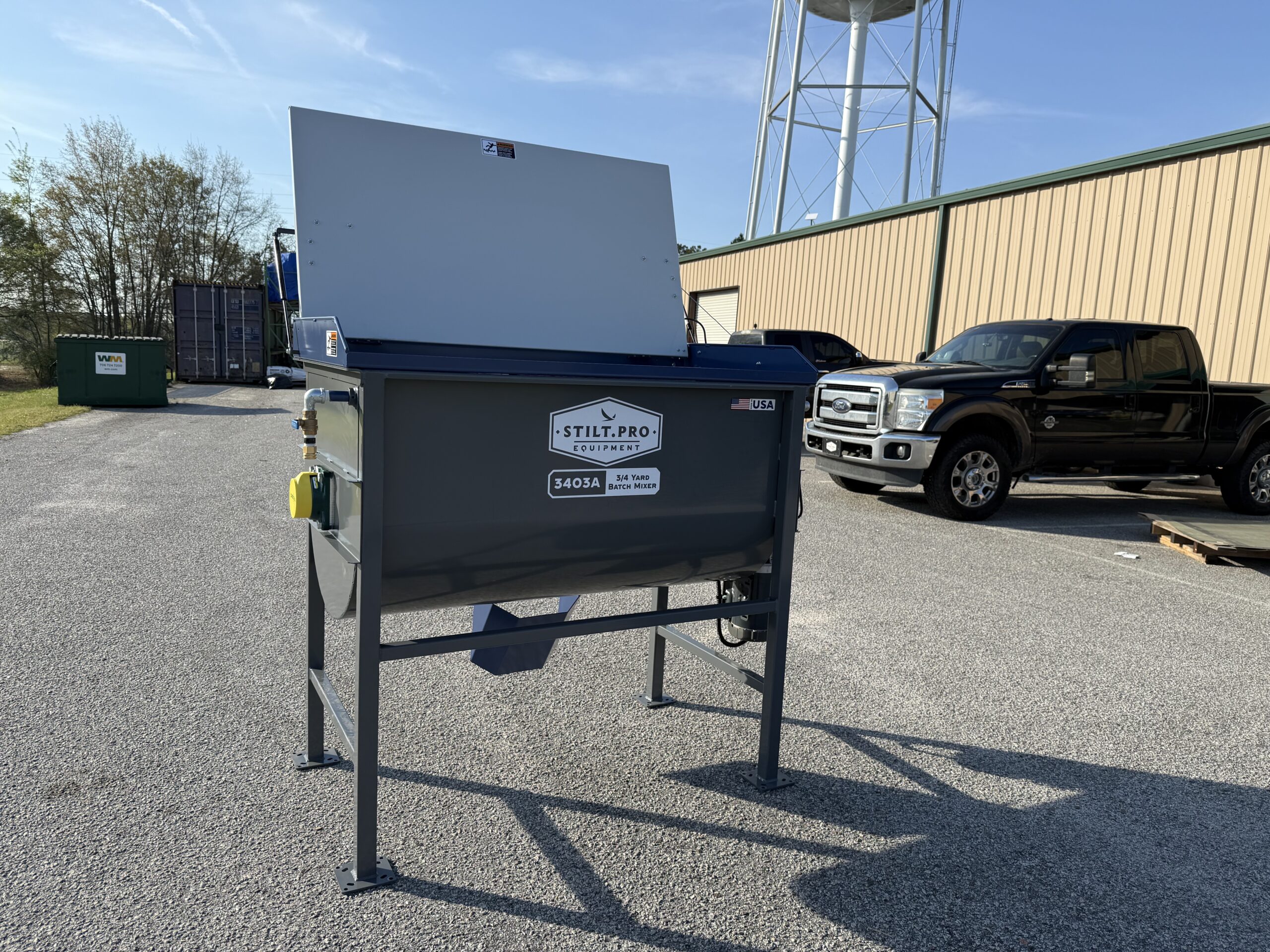

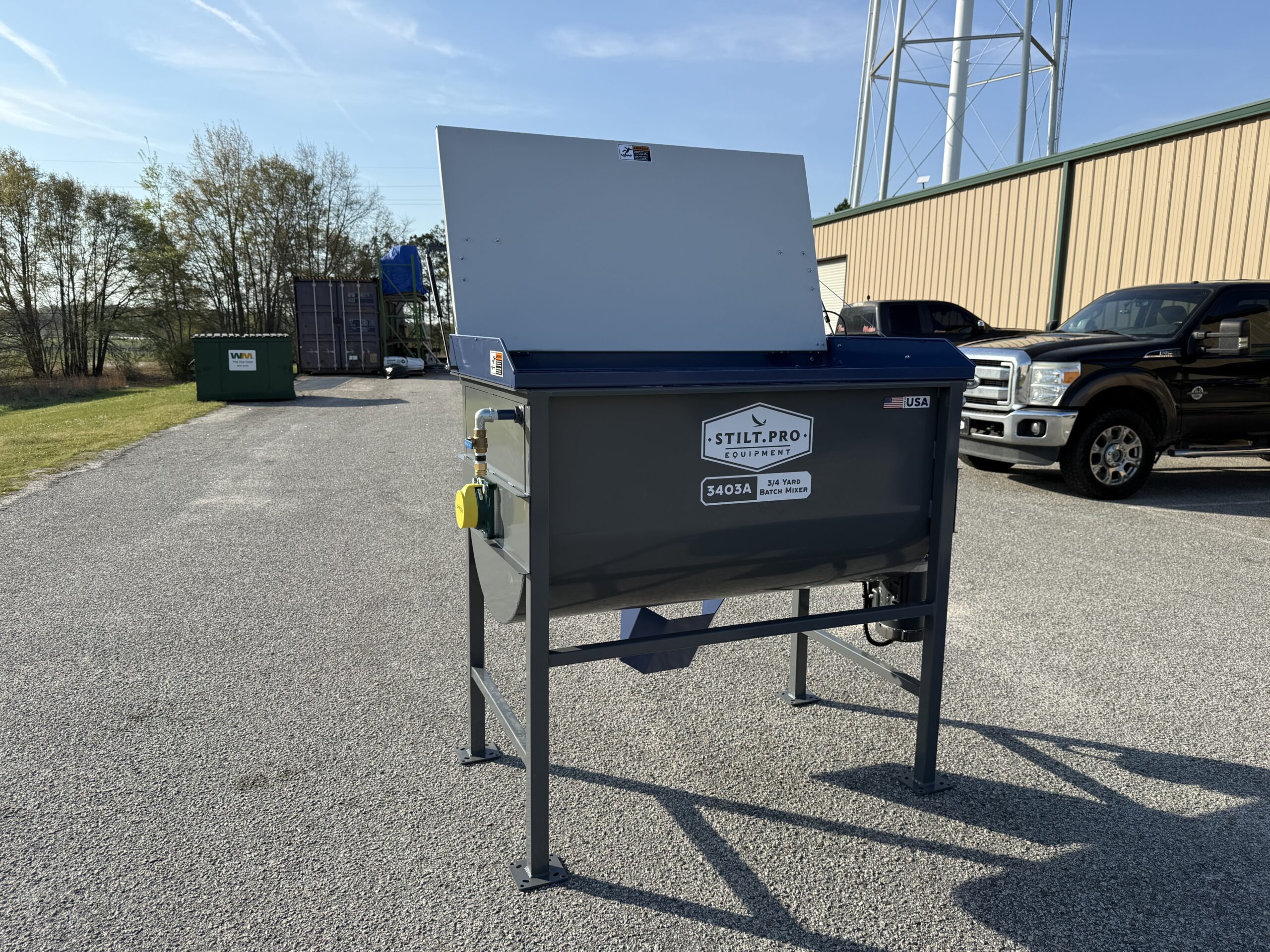

3/4 Yard Batch Mixer Model: The small capacity 3/4 Yard Mixer with 1 1/2 HP motor is perfect for small, controlled batch mixing. With a fixed 10 GA thick plate steel barrel, it is ideal for media of all types. The unit comes standard with a center discharge easy open gate. Custom options include foot pedal control, bag/chute outlet, caster and wheel mobility, and different power configurations.
1 1/4 Yard Batch Mixer Model: The small to medium capacity 1 1/4 Yard Mixer with 5 HP motor is perfect for small to medium, controlled batch mixing. With a fixed 10 GA thick plate steel barrel, it is ideal for media of all types. The unit comes standard with a center discharge easy open gate. Custom options include foot pedal control, bag/chute outlet, caster and wheel mobility, and different power configurations. Upgraded 7.5HP motor are available.

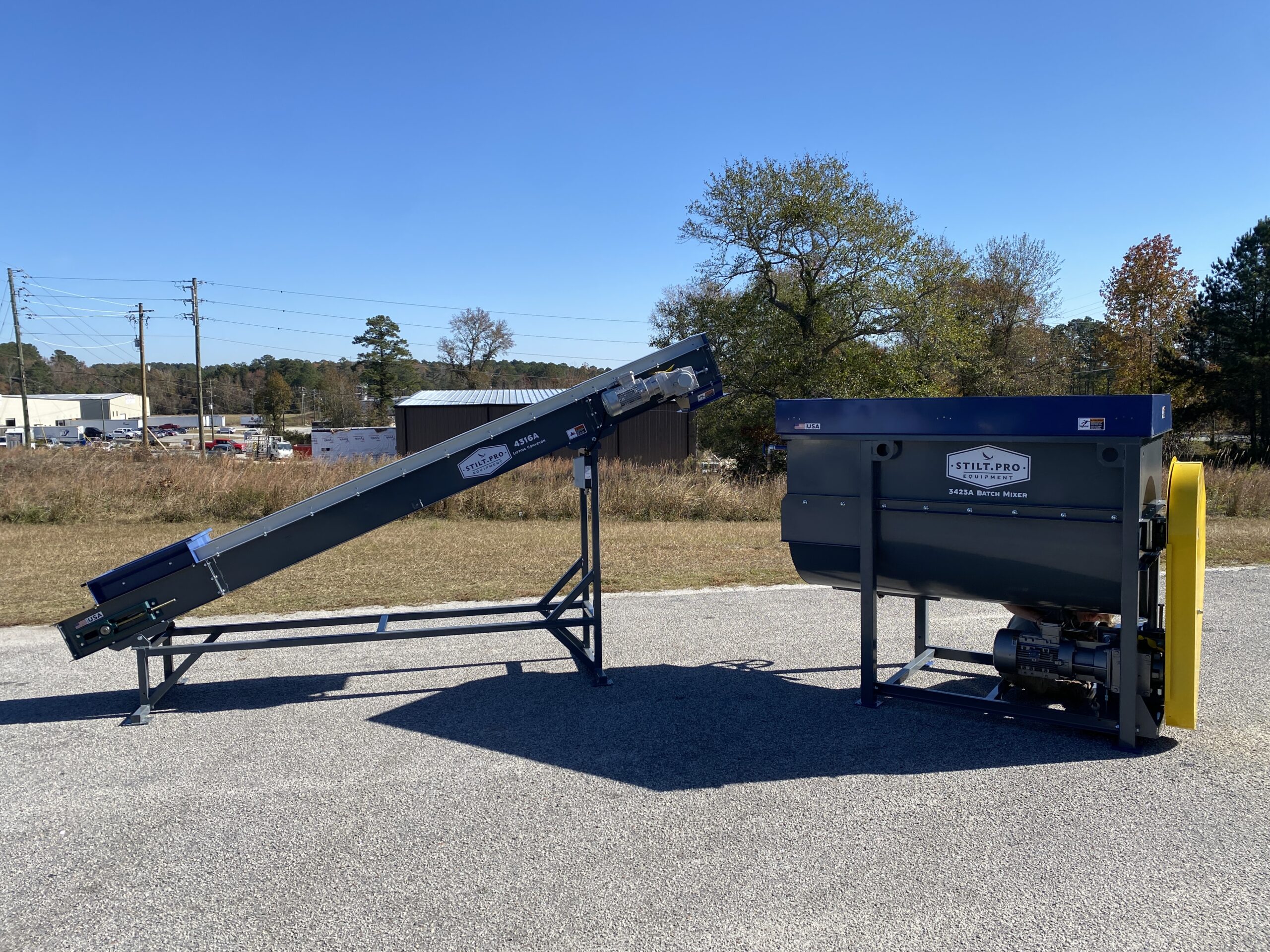

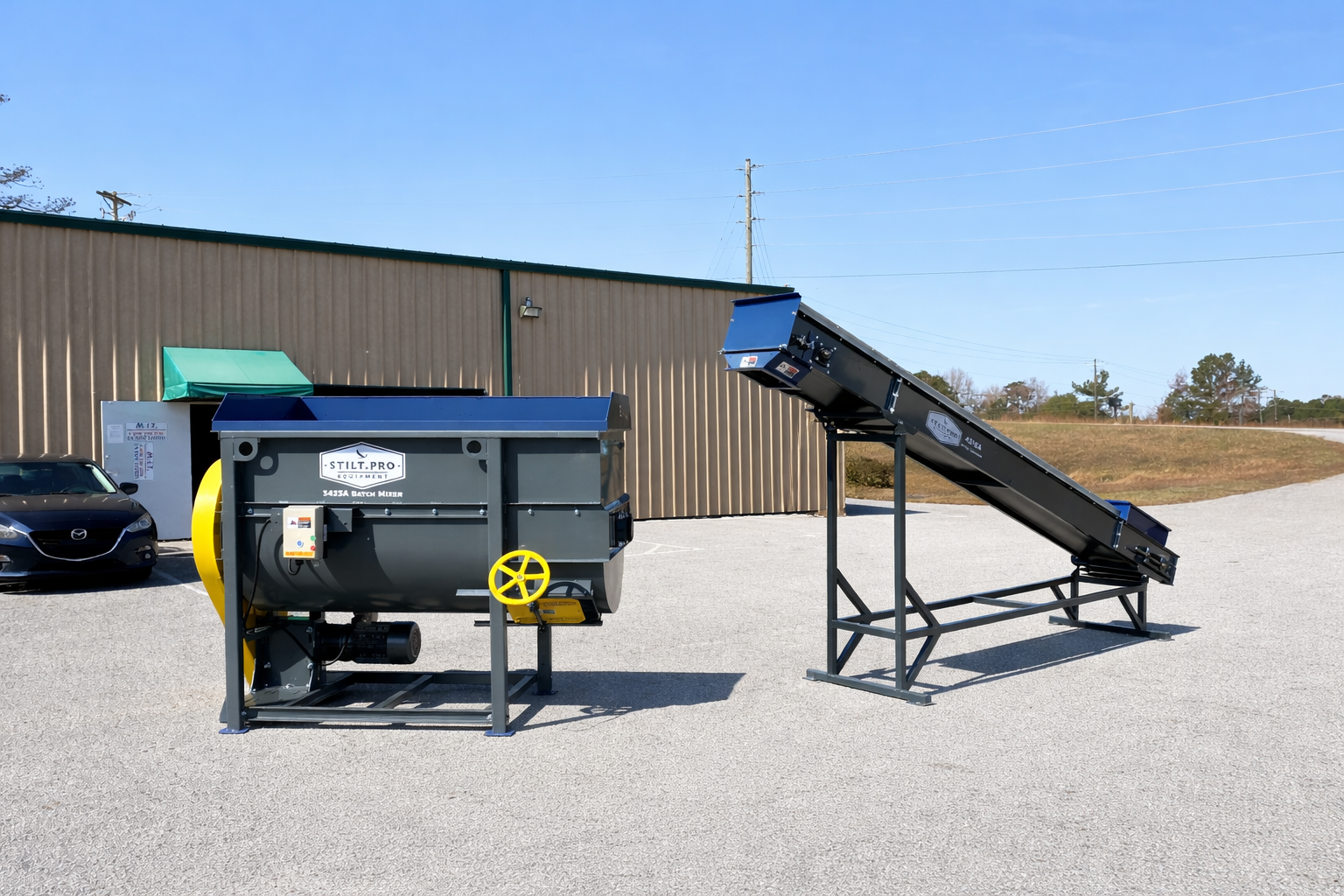

2 Yard Batch Mixer Model: The medium capacity, adjustable height, 2 Yard Mixer with a 7 ½ HP motor is perfect for medium to large batch mixing. With a REMOVABLE 3/16” thick plate steel barrel, it is ideal for media of all types. The unit comes standard with a side discharge and an easy turn handwheel operated gate. Custom options include abrasion resistant (AR400) plate barrel, foot pedal control, bag/chute outlet, caster and wheel mobility, and different power configurations. Upgraded 10HP and 15HP motors are available.
4 Yard Batch Mixer Model: The high capacity 4 Yard Mixer with a 20 HP motor is perfect for large batch mixing. With a REMOVABLE 3/16” thick plate steel barrel, it is ideal for media of all types. Easily fill the mixer via a front-end loader or a lifting conveyor. The unit comes standard with a side discharge and an easy turn handwheel operated gate. Custom options include abrasion resistant (AR400) plate barrel, foot pedal control, bag/chute outlet, and different power configurations.

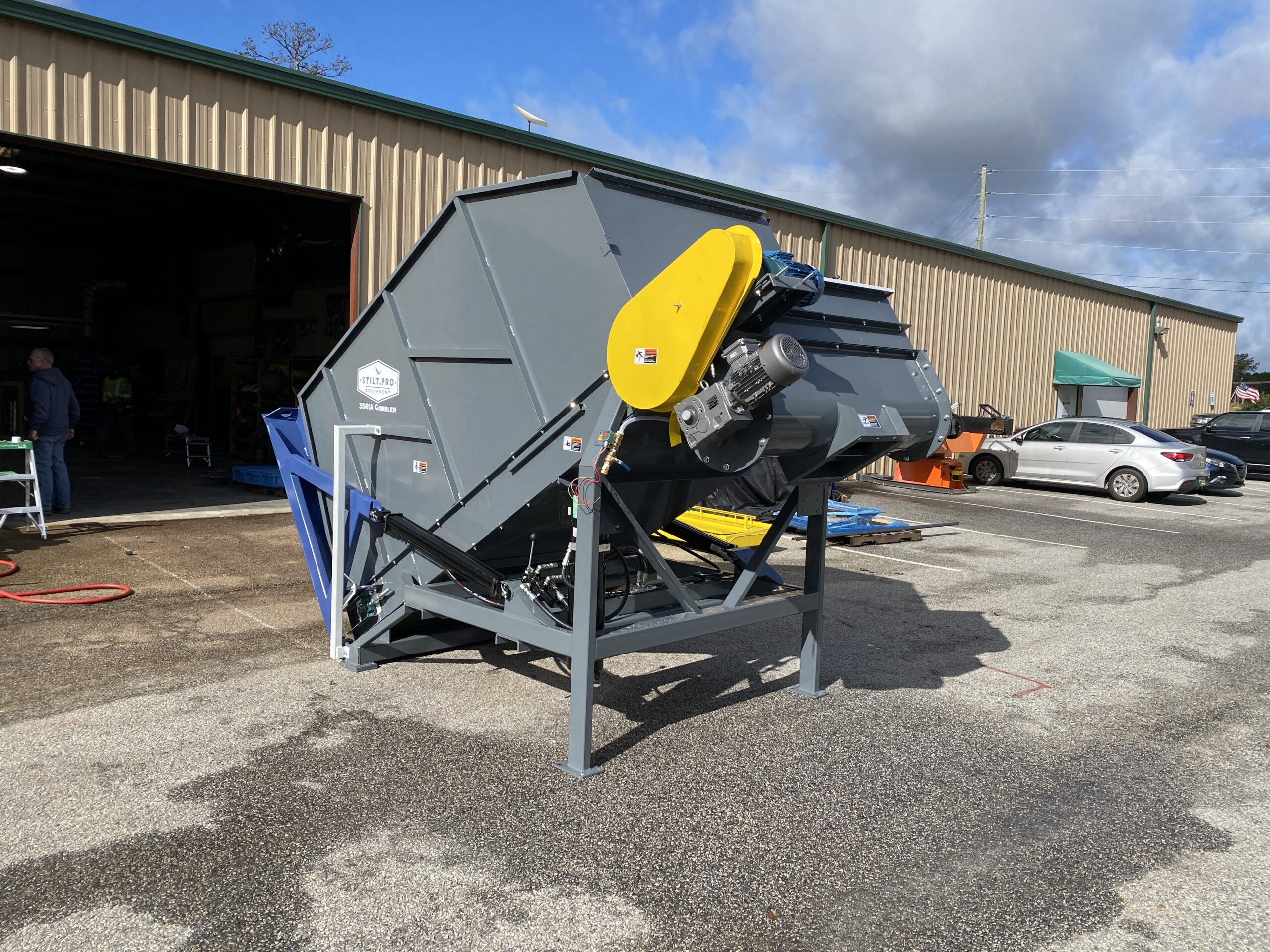

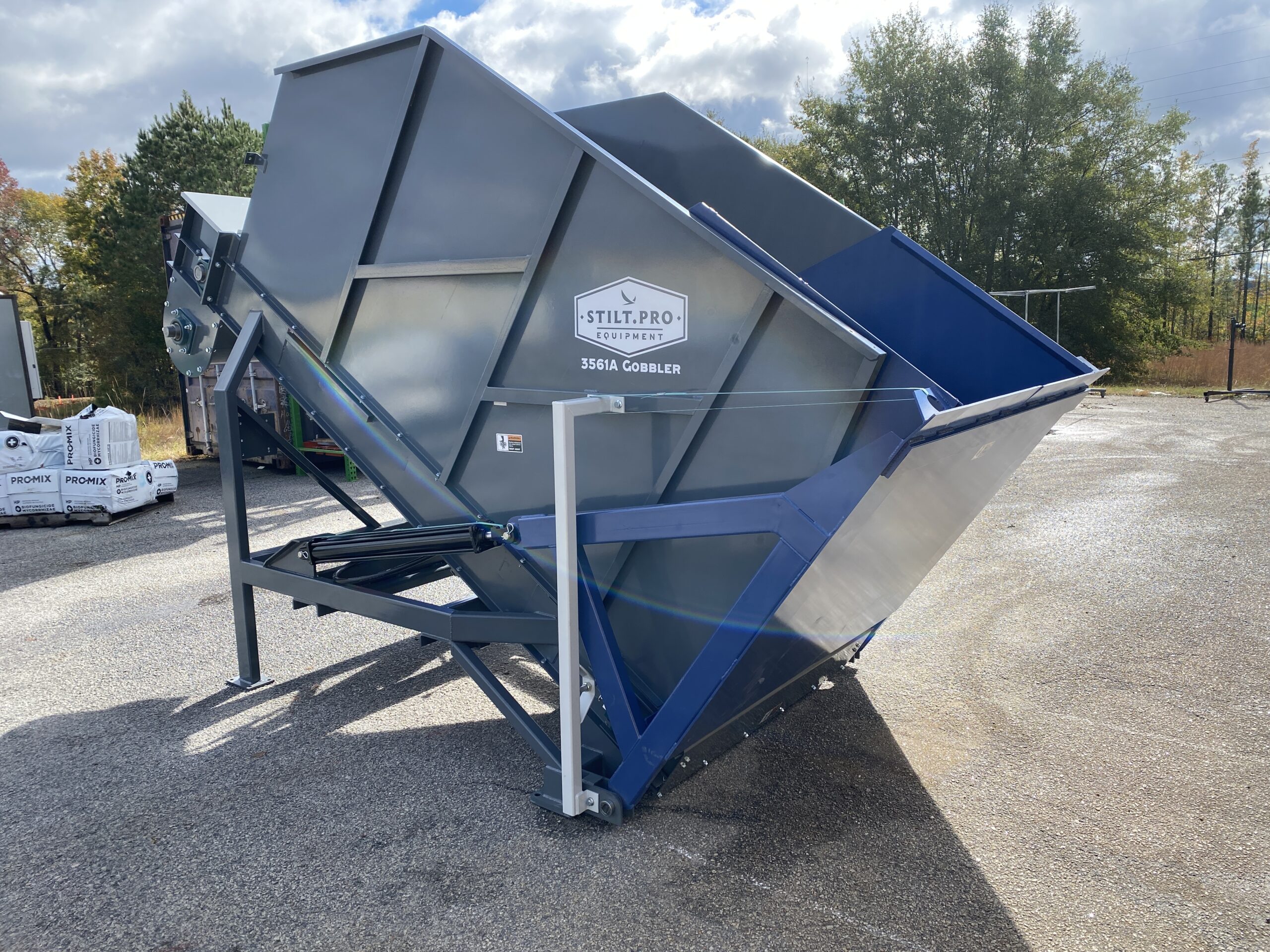

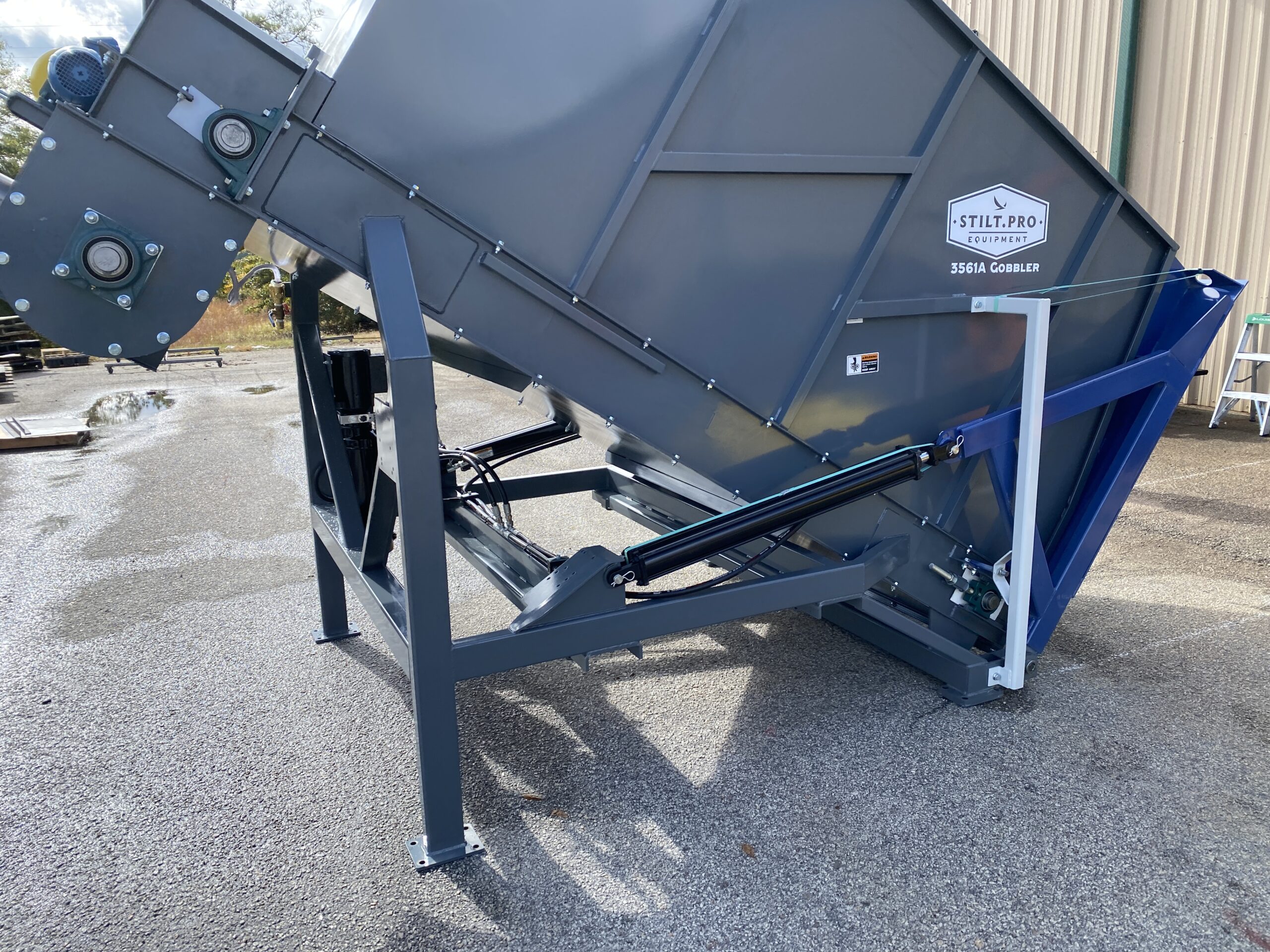

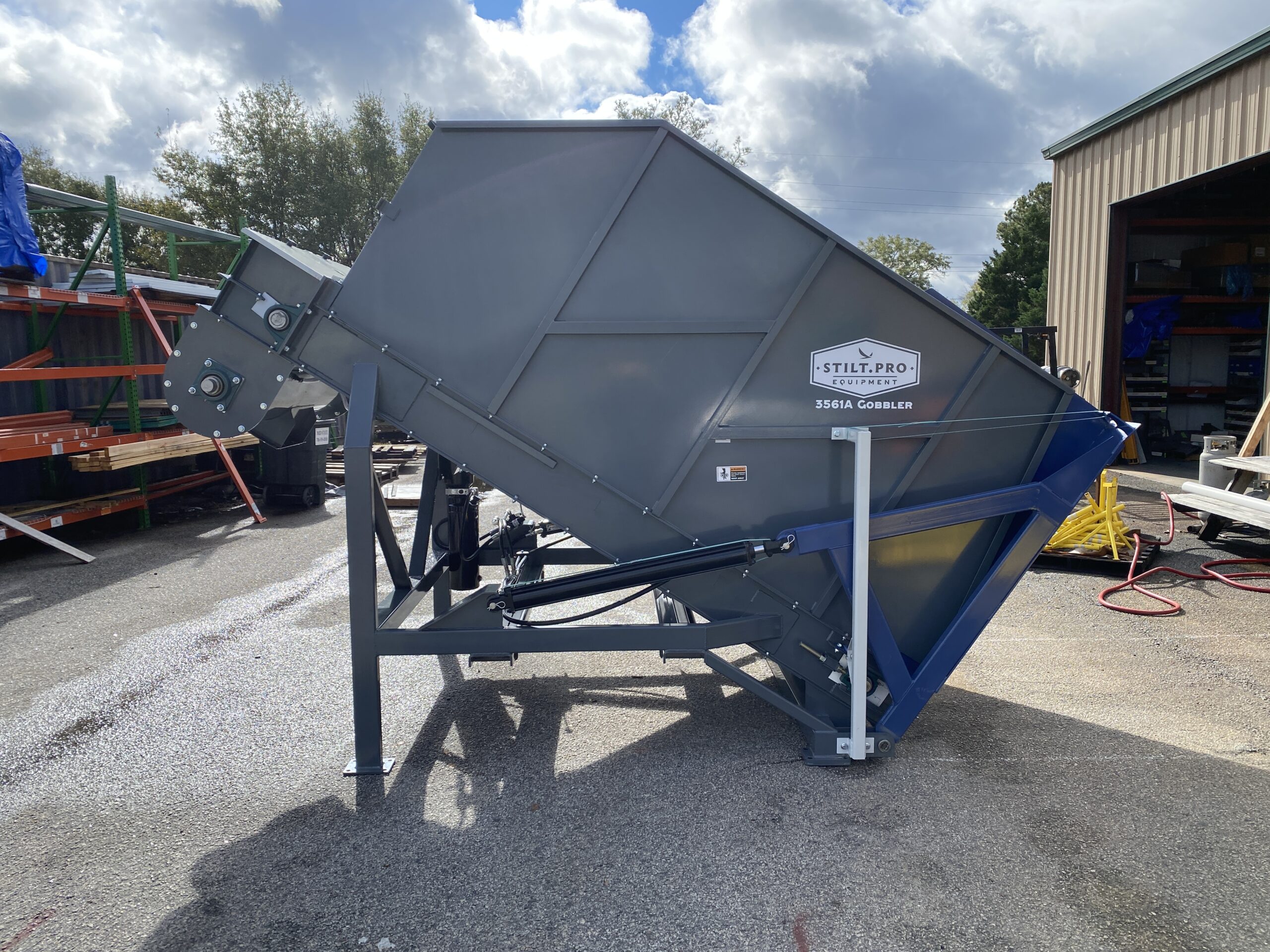

Gobbler Model: The Gobbler is a powerful, heavy-duty large bale processor designed for high-volume operations, capable of handling substantial 4’x4’x8′ bales up to 135 cubic feet of compressed material. This machine ensures safe handling of large bales while offering flexible integration with existing production systems or reliable manual operation. Equipped with an advanced watering system and an industrial mixing auger powered by an independent dedicated motor, the Gobbler delivers impressive production rates of 75 cubic yards per hour for maximum operational efficiency.

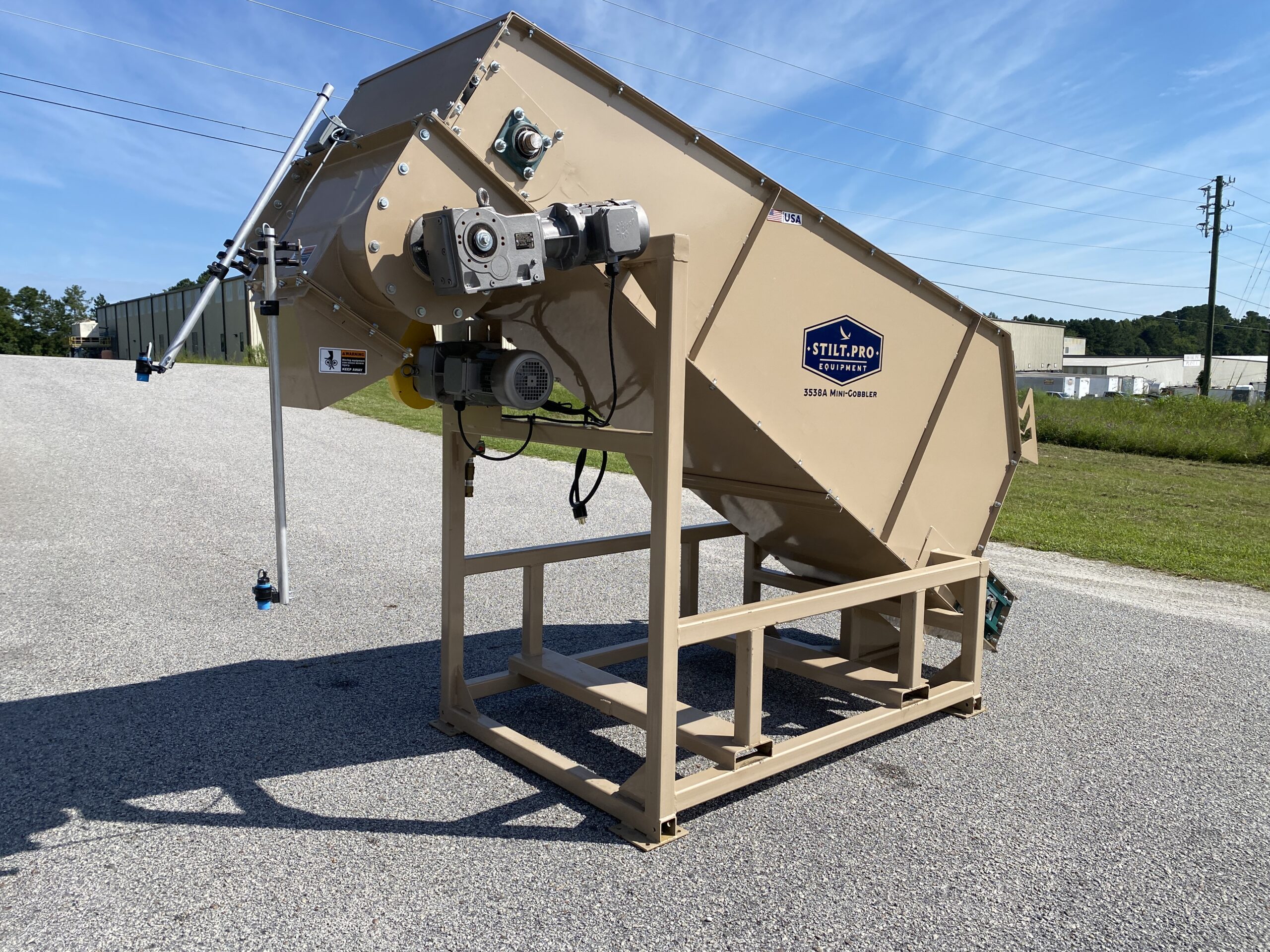

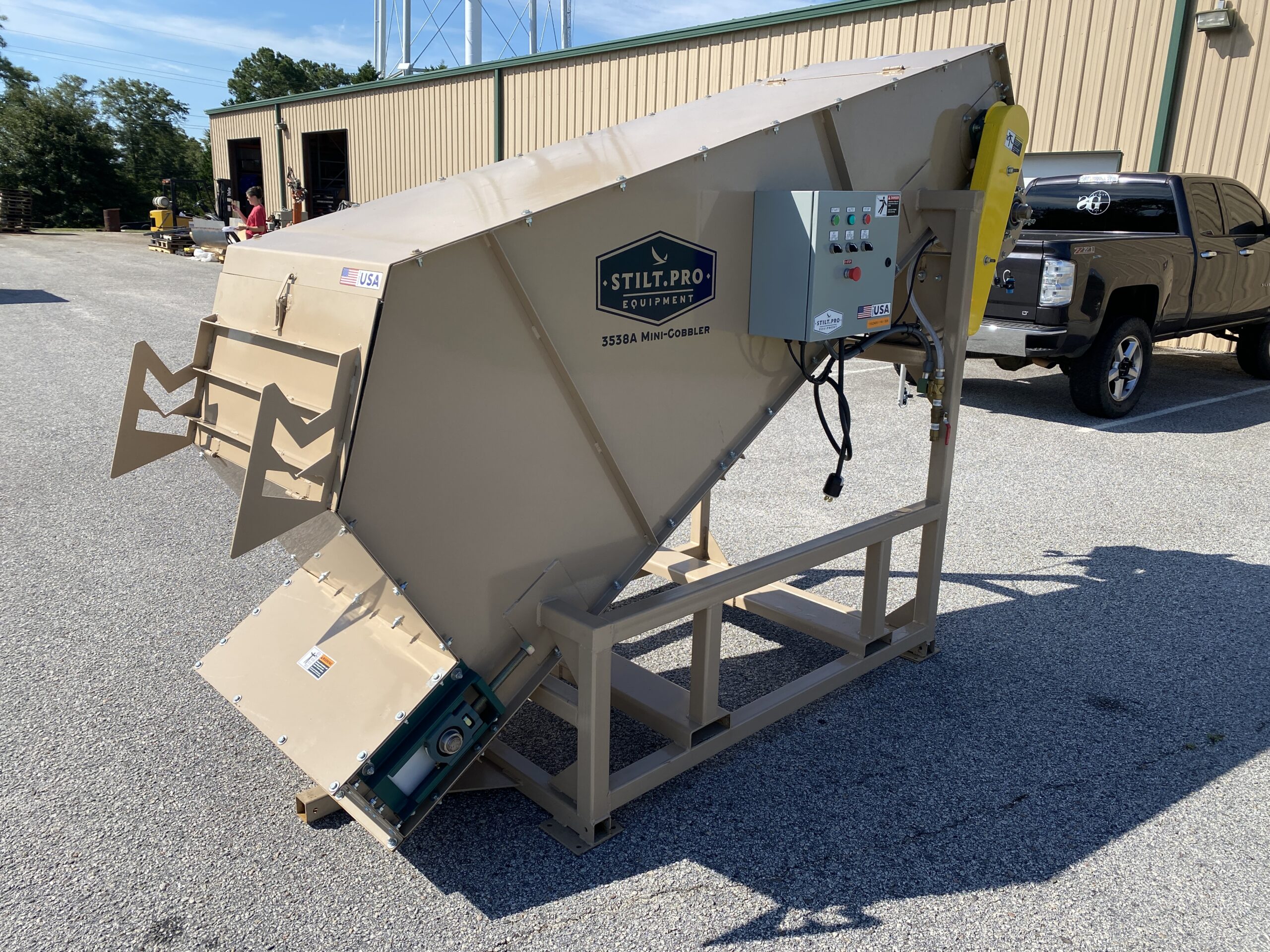

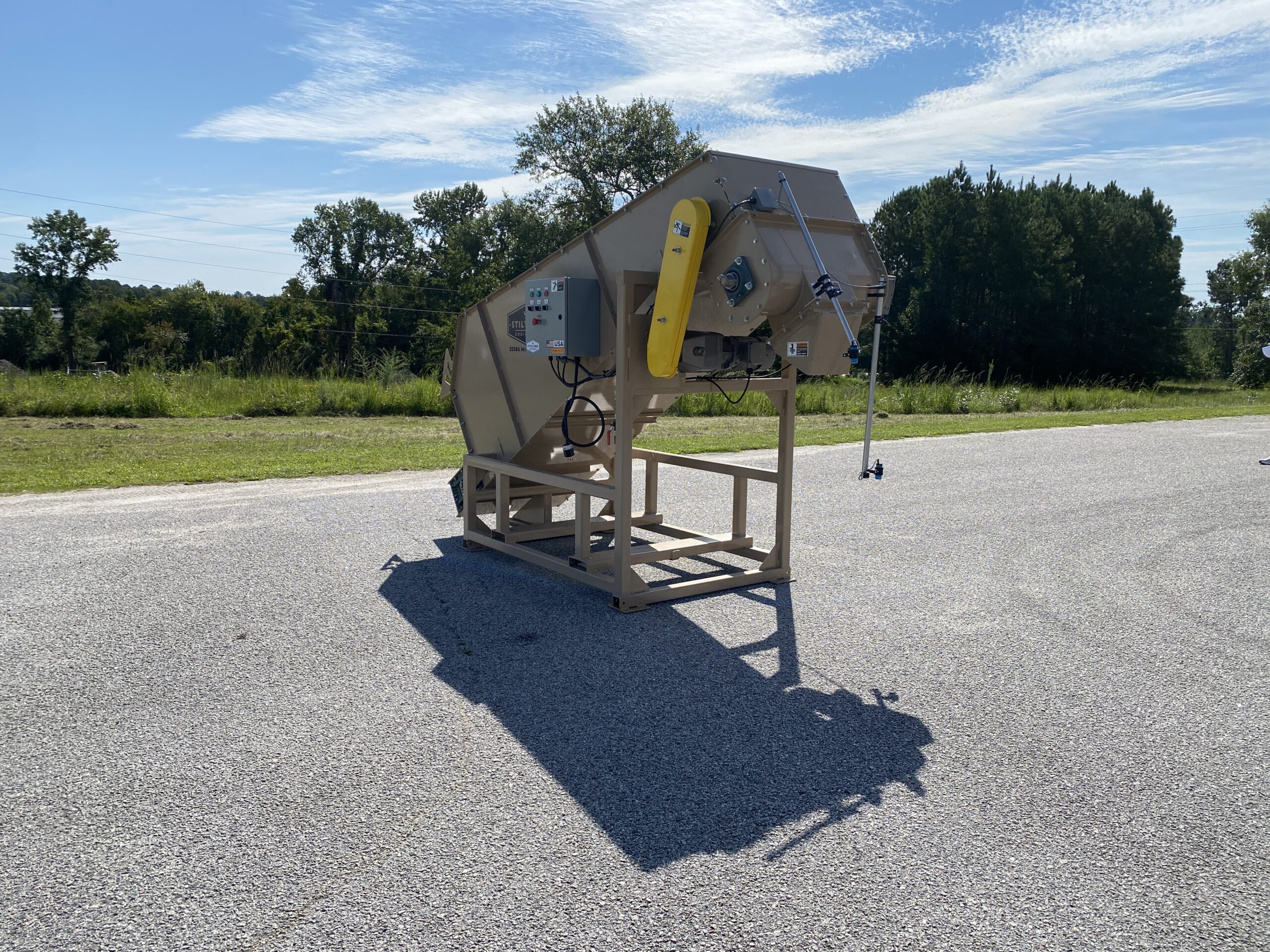

Mini-Gobbler Model: The Mini-Gobbler is a compact, heavy-duty small bale processor engineered for efficient handling of six 3.8 cubic feet compressed bales with a convenient low load height design. This versatile system provides seamless integration with production systems or dependable manual operation, featuring an advanced watering system and an industrial mixing auger driven by an independent dedicated motor. Despite its smaller footprint, the Mini-Gobbler maintains steady production rates of 15 cubic yards per hour, making it ideal for smaller-scale operations.
| Model | 3403A | 3413A | 3423A | 3442A |
|---|---|---|---|---|
| Description | 3/4 Yard Mixer | 1-1/4 Yard Mixer | 2 Yard Mixer | 4 Yard Mixer |
| Soil Capacity | 3/4 cu. yd. | 1 1/4 cu. yd. | 2 cu. yd. | 4 cu. yd. |
| Height | 57" | Adjustable | Adjustable | 99" |
| Length | 64" | 84" | 94" | 120" |
| Width | 32" | 36" | 73" | 56" |
| Hopper Length | 54" | 72" | 78" | 96" |
| Discharge | Center Lift Gate | End Lift Gate | End Slide Gate | End Slide Gate |
| Discharge Height | 24" | 18" up to 36" | 23" up to 45" | 42" |
| Discharge Time Appx. | 2 minutes | 3 minutes | 3 minutes | 4 minutes |
| Capacity | 3-4 cu. yds/hr | 6-8 cu. yds/hr | 12-16 cu. yds/hr | 24-32 cu. yds/hr |
| Drive | 1.5 HP TEFC | 5 HP TEFC | 7.5 HP TEFC | 20 HP TEFC |
| Electrical | 1 PH / 115 VAC | 1 PH / 230 VAC | 1 PH / 230 VAC | 3 PH / 230 VAC |
| Starter | Manual | Manual | Magnetic | Magnetic |
| Tank Thickness | 12 Gauge | 10 Gauge | 7 Guage (3/16”) | 7 Guage (3/16”) |
| Shipping Weight | 590 lbs | 1240 lbs | 2200 lbs | 3480 lbs |
| Features | safety grate with splash guard water spray pipes paddle auger design | safety grate with splash guard water spray pipes paddle auger design removable barrel handwheel discharge gate |
||
| Options | Integral direct drive chain and sprocket drive | 7.5 HP motor chain and sprocket drive 3 Phase electrical | 3/16" Plate Abrasive Resistant Steel Barrel 10HP or 15 HP motor integral direct drive chain and sprocket drive 3 Phase electrical | Abrasive Resistant Plate Barrel various barrel thicknesses 460 Volt 3 Phase electrical |
3 Year, Unlimited Hours Warranty – INCLUDED
Includes: Problem identification, remote trouble shooting of issue, support and instruction for proper repair, and providing replacement of failed parts.
Excludes – Misuse of equipment (including using non horticultural potting mixes with high sand and field soil content) or improper care, such as leaving fertilizer in machine for an extended period of time. Wear parts (chain, slats, wear plates or surfaces). External physical damage inflicted on the machine. Labor repair costs.
Yes, we keep inventory of most all parts. Most all of the components are either US Sourced or a common off the shelf component. We are having some supply chain issues on components, but we are working through the best way to manage that.
All of our machines are designed right here in the US. We design these machines to be easily repairable by an inexperienced worker. Should a problem arise, you won’t need to weld or fabricate a new part. The entire machine is bolted together and you can simply bolt in a replacement part.
We have heard that concern, I get it, you won’t be able to load a machine up and let a person pot plants for a day.
Some perspective – The rear load machine holds about 3/4 – 1 cubic yard which is up to about 200 gallons of material. That gives you about 15 minutes of runtime without stopping.
The reason for the smaller equipment size is to primarily keep the price and complexity down.
-Increase horsepower requirements which means increased power – now you have to have dedicated power for the machine.
-Increasing the hopper size also increases the physical size of the machine which increases the overall cost and reduces portability
You may have not made a purchase on a potting machine in the past because of the overall cost.
From time to time, we hear that our production rates appear slow. Look at it this way though. You have 5 or 10 workers running a high-speed line. SOMETHING GOES WRONG, you now have all these people standing around and/or you need to find a different job for them.
If you have a machine problem with a high-speed line you’re completely shut down. With a cell-based design, you have a small part of the potting operation down. Your efficiency is similar whether you have 1 or 4 people operating STILT.PRO machines.
