Water Tunnel
Model 2200A
The Water Tunnel wets in plant material before it goes to the field, settling the media and holding freshly placed plants in place during transport. Quad spray heads, a plastic chain belt that lets water fall through, adjustable legs and variable drive speed.
- Motor Size
- 1/8 HP (DC)
- Opening Size
- 18" wide x 18" high inside opening
Key features
- Quad spray heads with a variety of nozzle sizes available
- Adjustable legs can be set to match the height of your other equipment
- Optional electronic control of water spray
- Plastic chain that allows water to fall through the conveyor belt
- Variable drive speed
How it works
Water tunnels are useful to wet in plant material and prepare plants for the field. It will also allow material to settle and be less likely to be damaged during transport.
Water tunnels are a great way to reduce labor and give plants a good start before they go to the field. Other advantages include wetting the media to allow it to settle and hold the freshly placed plant in place during transport.
Specifications
| Motor Size | 1/8 HP (DC) |
|---|---|
| Opening Size | 18" wide x 18" high inside opening |
| Phase / Voltage / Frequency | Single Phase / 115V / 60 Hz |
|---|---|
| Amperage | 2A |
| Dimensions | 68"L x 30"W x Adjustable height |
|---|---|
| Weight | Less than 500 lb |
| Standard Options (Included) | Powder-coated mild steel body |
|---|---|
| Available Options | Stainless steel body |
| Portability | Casters |
| Operator Customizations | Water on/off control with photo eye |

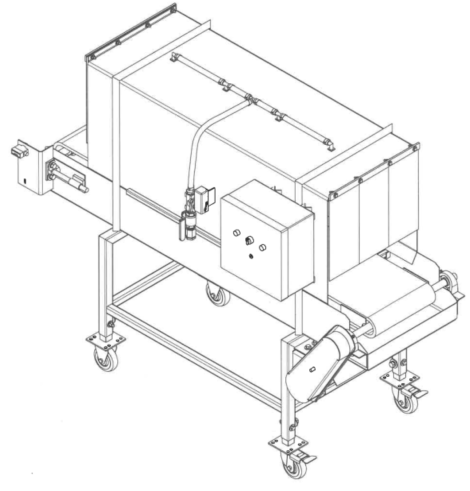

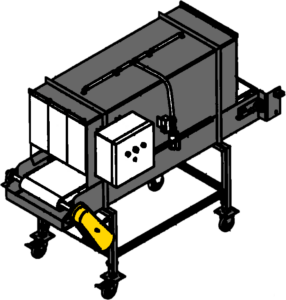

Photos and views
Warranty
1 Year Limited Warranty
Service and parts
Service / Parts through STILT.PRO
Request a quote
Tell us about your operation and we'll put together a quote for the Water Tunnel. Prefer to talk? Call (706) 312-8410.
