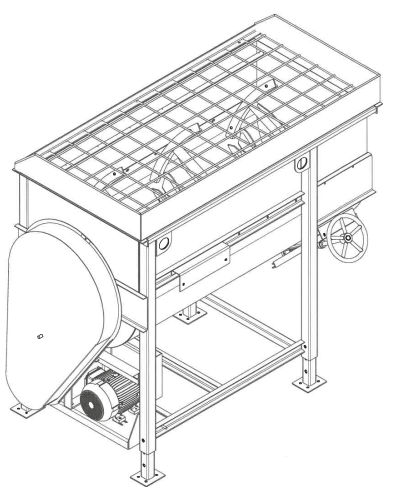

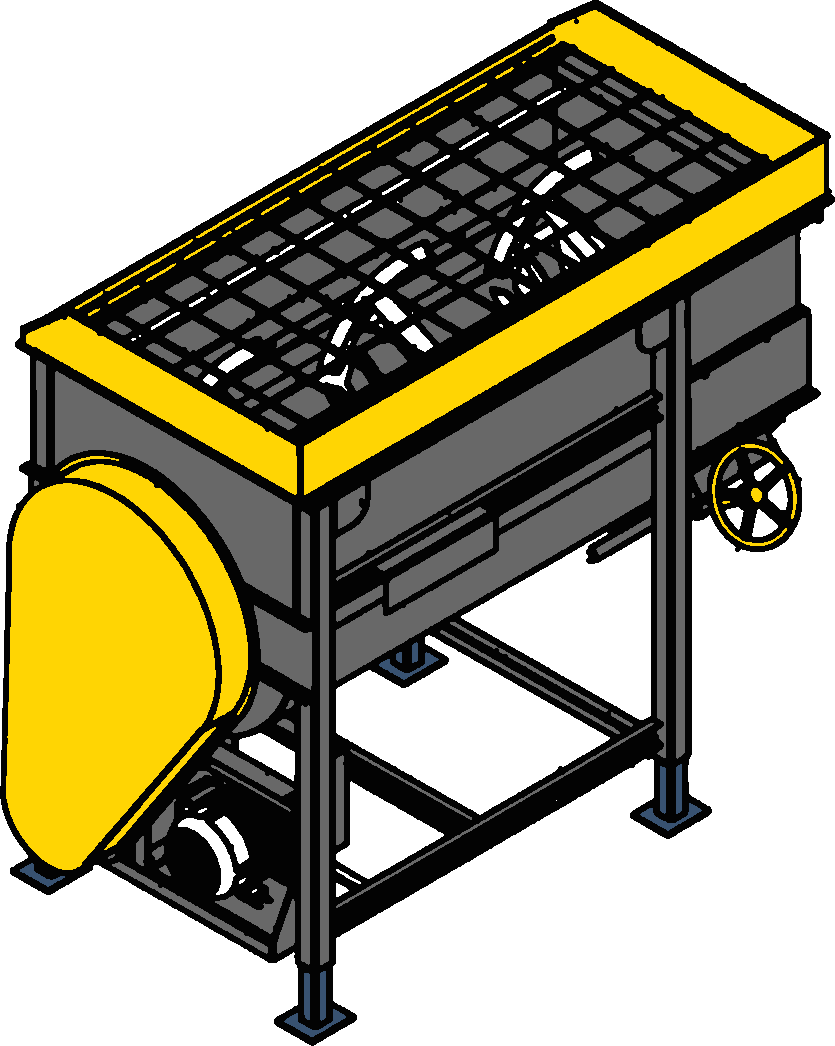

2 Yard Batch Mixer
Model 3423A
The 2 Yard Mixer with BOLT REPLACEABLE BARREL, ADJUSTABLE PADDLES, and a 7.5 HP motor is built for higher-volume batch mixing with a 7 GA (3/16in) plate steel barrel. Options include AR400 abrasive-resistant plate, larger motors, three-phase power and variable speed.
- Hopper Capacity
- 2 cu yd
- Motor Size
- 7.5 HP
- Production Rate
- 12–16 cu yd/hr
- Tank Thickness
- 7 ga (0.1875")
Key features
- Paddle auger design that gently lifts and blends soil material
- Water spray pipes to moisten mix
- Standard safety grate with splash guard for employee protection
- Heavy duty construction for years of service
How it works
Mixers operate by loading your ingredients into the machine through the top grate. Turn on and let the batch mix for a few minutes. Then open the outlet or slide gate to allow material to be released.
STILT.PRO Mixing Equipment offers rapid, complete and uniform mixing of your soil media. Our mixer capacities range from a small ¾ yard mixer to our large 4-yard mixer. Each utilizes a custom paddle auger design, which gently lifts and blends your media.
Specifications
| Hopper Capacity | 2 cu yd |
|---|---|
| Motor Size | 7.5 HP |
| Production Rate | 12–16 cu yd/hr |
| Tank Thickness | 7 ga (0.1875") |
| Phase / Voltage / Frequency | Single Phase / 208-240V / 60 Hz |
|---|---|
| Amperage | 30–32A |
| Dimensions | 94"L x 73"W x Adjustable height |
|---|---|
| Weight | 2200 lb |
Included and optional equipment
Electrical Options
- 3 Phase/ 230-460 Volt Electrical Box, NEMA 1, 7.5HP MotorOptional
- 1 Phase / 230 Volt Electrical Box, NEMA 1, 7.5HP Motor - 2YDOptional
- Foot Pedal ControlOptional
Options and accessories

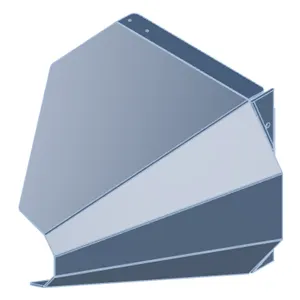

2 YD Chute OptionOptional- Caster Set - Mixers - 2YDOptional

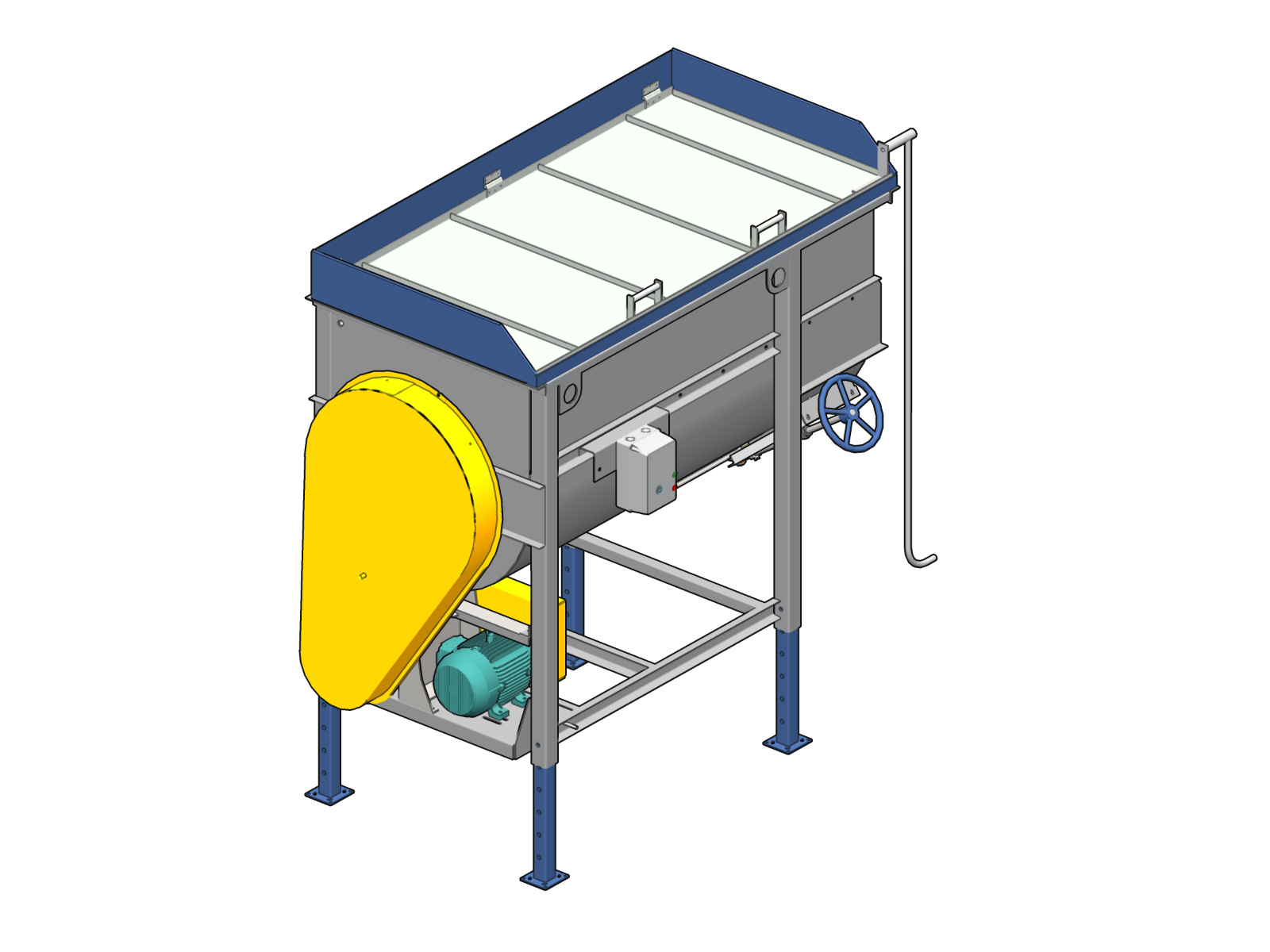

Hinged assisted lift cover with handles - 2YDOptional
Options vary by configuration. Ask us which fit your operation.
Photos and views
Videos
Warranty
1 Year Limited Warranty
Service and parts
Service / Parts through STILT.PRO
Compare batch mixers
| Spec | 3/4 Yard Batch Mixer 3403A | 1 1/4 Yard Batch Mixer 3413A | 2 Yard Batch Mixer 3423A | 4 Yard Batch Mixer 3442A |
|---|---|---|---|---|
| Hopper Capacity | 3/4 cu yd | 1 1/4 cu yd | 2 cu yd | 4 cu yd |
| Motor Size | 1.5 HP | 5 HP | 7.5 HP | 20 HP |
| Production Rate | 3–4 cu yd/hr | 6–8 cu yd/hr | 12–16 cu yd/hr | 24–32 cu yd/hr |
| Tank Thickness | 10 ga (0.1345") | 10 ga (0.1345") | 7 ga (0.1875") | 7 ga (0.1875") |
| Dimensions | 64"L x 32"W x 57"H | 84"L x 36"W x Adjustable height | 94"L x 73"W x Adjustable height | 120"L x 56"W x 99"H |
| Weight | 590 lb | 1240 lb | 2200 lb | 3480 lb |
| Power | Single Phase / 115V & 208-240V / 60 Hz | Single Phase / 208-240V / 60 Hz | Single Phase / 208-240V / 60 Hz | 3 Phase / 208-240V & 460V / 60 Hz |
| Amperage | 18A @ 115V, 7–9A @ 208-240V | 16–17A | 30–32A | 48–52A @ 208-240V, 24A @ 460V |
| Tank Options | Standard only | Standard only | 3/16" AR400 abrasive-resistant plate | 3/16" AR400 abrasive-resistant plate |
| Motor Size and Power | Standard only | 7.5 HP motor, 3-phase, 208-240V / 480V | 10 HP motor, 15 HP motor, 3-phase, 208-240V / 480V | Standard only |
| Portability | Pneumatic tires, Casters | Pneumatic tires, Casters | Pneumatic tires, Casters | Standard only |
| Operator Customizations | Foot pedal control, Chute / bag filler outlet, Assisted lift cover | Foot pedal control, Chute / bag filler outlet, Assisted lift cover | Foot pedal control, Chute / bag filler outlet, Variable speed drive, Assisted lift cover | Foot pedal control, Chute / bag filler outlet |
