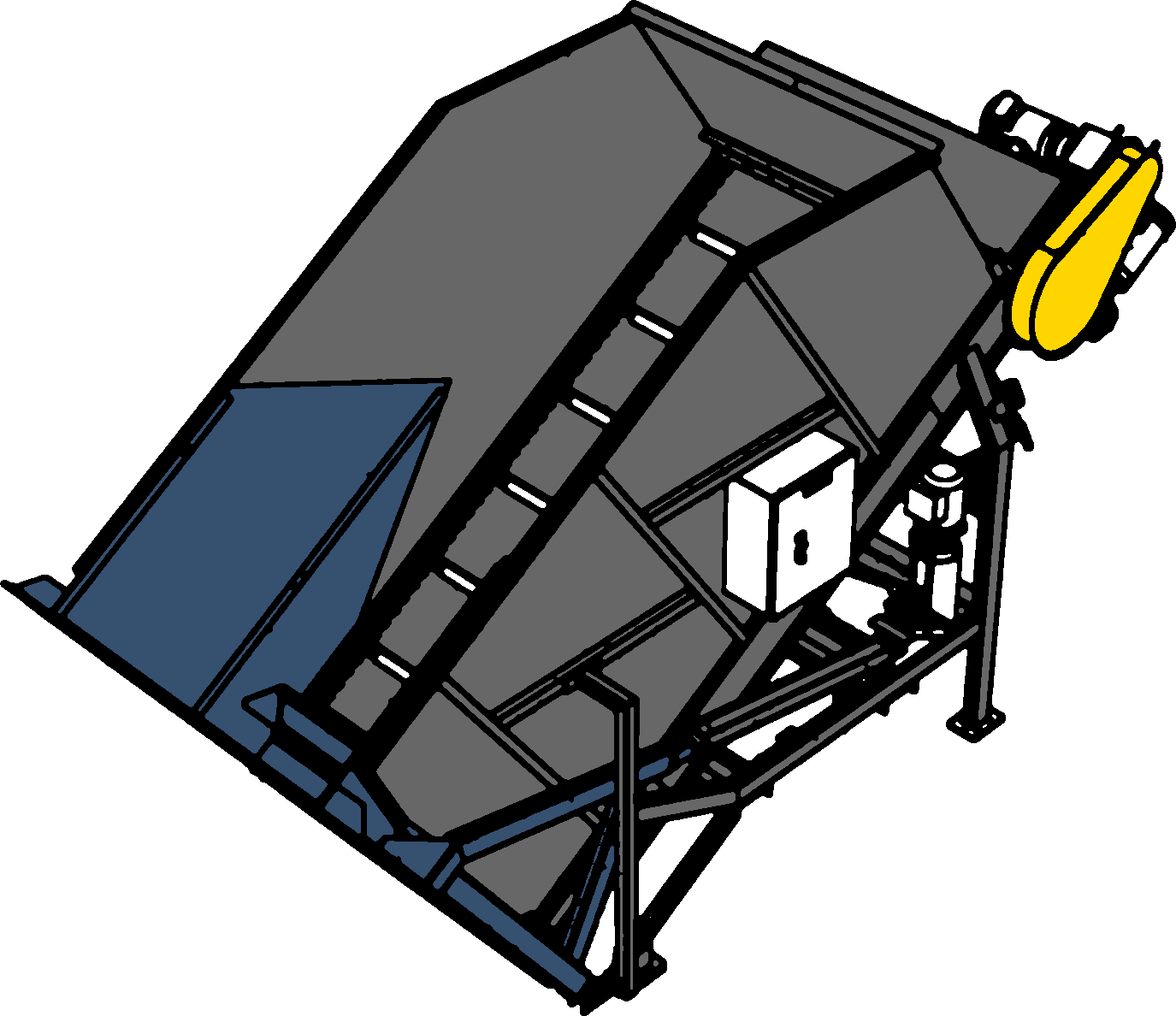

Gobbler Large Bale Processor
Model 3561A
The Gobbler processes full-size 4' x 4' x 8' bales automatically -- fluffing, watering and dispensing media into your filling or conveying equipment at up to 75 cubic yards per hour.
- Bale Size
- 4' x 4' x 8' (135 cu ft)
- Motor Size
- 2 × 2 HP
- Production Rate
- 75 cu yd/hr
- Discharge Height
- 42" (floor clearance)
Key features
- Hydraulic lift gate platform
- Industrial grade mixing auger
- Fully enclosed unit to reduce dust
- Fertilizer dosing available
- Easy clean out and minimal maintenance
How it works
Bale processors operate by safely loading your bales into the machine and then uniformly blending, fluffing, watering and dispensing into your filling or conveying equipment. Set these machines to automatic to integrate into a complete production system.
Use STILT.PRO Processing equipment to automate bale processing, eliminating labor costs, saving time and providing a uniform mix. The simple controls of these machines will increase your productivity with minimal maintenance.
Specifications
| Bale Size | 4' x 4' x 8' (135 cu ft) |
|---|---|
| Motor Size | 2 × 2 HP |
| Production Rate | 75 cu yd/hr |
| Discharge Height | 42" (floor clearance) |
| Phase / Voltage / Frequency | Single Phase / 208-240V / 60 Hz |
|---|---|
| Amperage | 30A |
| Dimensions | 174"L x 74"W x 108"H |
|---|---|
| Weight | 4200 lb |
Included and optional equipment
Options and accessories

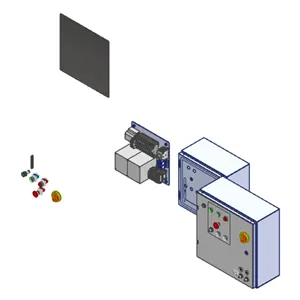

Gobbler Electrical Panel, 1 Phase / 208-240VOptional
Options vary by configuration. Ask us which fit your operation.

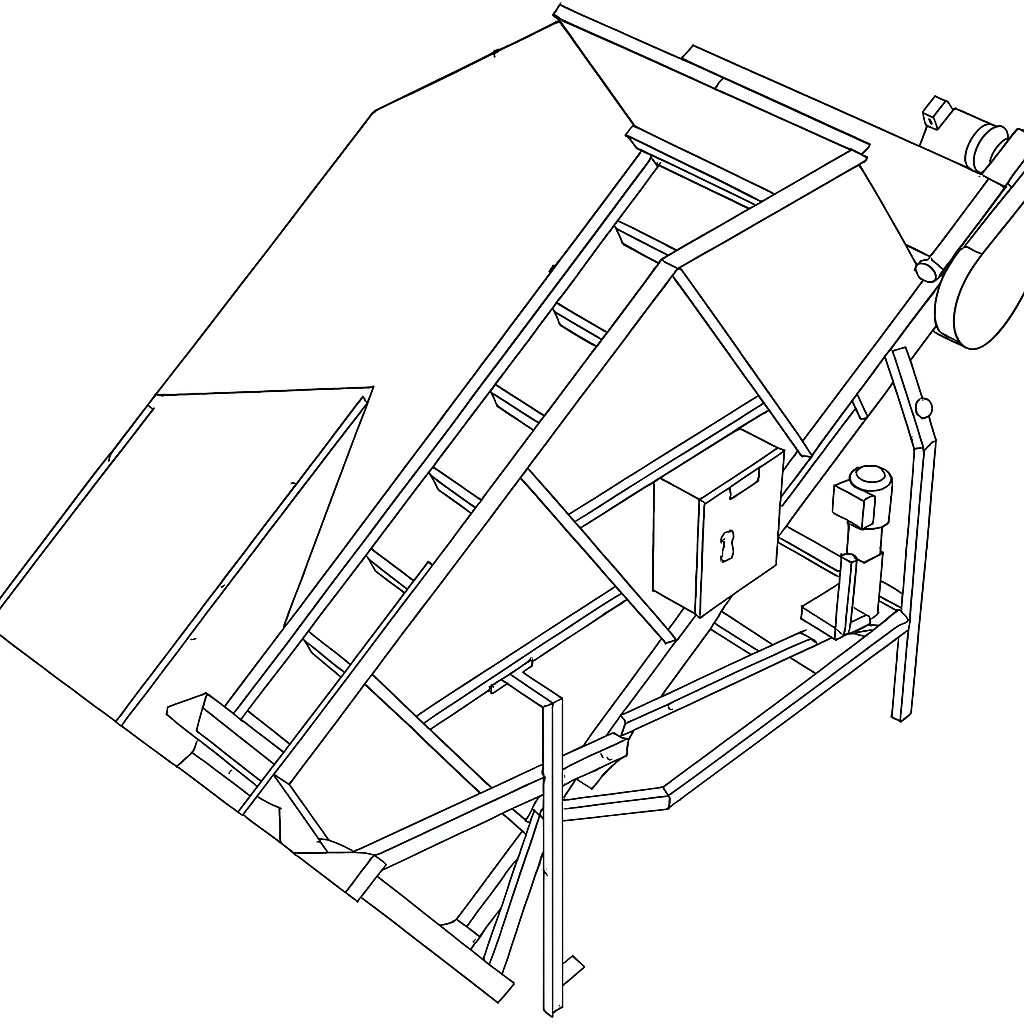

Photos and views
Warranty
1 Year Limited Warranty
Service and parts
Service / Parts through STILT.PRO
Compare soil processing
| Spec | Gobbler Large Bale Processor 3561A | Mini Gobbler 3538B |
|---|---|---|
| Bale Size | 4' x 4' x 8' (135 cu ft) | 3.8 cu ft (up to 6 at a time) |
| Motor Size | 2 × 2 HP | 1.5 HP and 1 HP motors |
| Production Rate | 75 cu yd/hr | 15 cu yd/hr |
| Discharge Height | 42" (floor clearance) | 42" (to floor) |
| Dimensions | 174"L x 74"W x 108"H | 139"L x 48"W x 87"H |
| Weight | 4200 lb | — |
| Power | Single Phase / 208-240V / 60 Hz | Single Phase / 208-240V / 60 Hz |
| Amperage | 30A | 18–20A |
| Standard Options (Included) | Solenoid-activated water dosing, Hi/low material sensors | Solenoid-activated water dosing, Hi/low material sensors |
| Attachments | Top hopper single amendment dispenser, Custom outlet designs | Custom outlet designs |
| Portability | Standard only | Heavy duty casters |
Request a quote
Tell us about your operation and we'll put together a quote for the Gobbler Large Bale Processor. Prefer to talk? Call (706) 312-8410.
