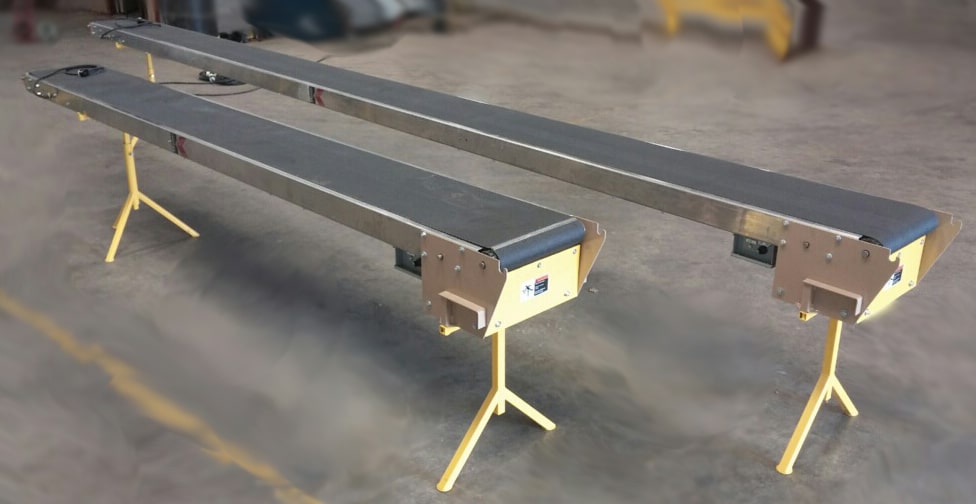

Modular Conveyor
Model 4100A
Modular conveyors in 10" and 15" belt widths move pots, flats and material between machines. Combine multiple sections to span distance, and choose plug-in head stands, tripod stands or adjustable height stands to match your line.
- Belt Width
- 10" and 15"
- Motor Size
- 1/8–1/2 HP
- Belt Speed
- 55 ft/min
- Load Capacity
- 100–500 lb
Key features
- Aluminum slider bed construction is standard
- Manual motor starter switch & self-cleaning tail pulley
- Combine multiple conveyors for transporting material long distances
- Mobility options, including casters, pneumatic, or semi-pneumatic wheels are available
- Stand options include adjustable or fixed height stands
How it works
Conveyors serve as a semi-autonomous way to move pots, flats, and other material. These machines can be customized to fit your operation and reduce the effort required from your employees.
Greenhouse and nursery conveyors are an excellent solution for automating laborious tasks such as transportation and plant shifting. These machines can help you reduce labor costs and production times, making them perfect for your greenhouse needs.
Specifications
| Belt Width | 10" and 15" |
|---|---|
| Motor Size | 1/8–1/2 HP |
| Belt Speed | 55 ft/min |
| Load Capacity | 100–500 lb |
| Phase / Voltage / Frequency | Single Phase / 115-230V / 60 Hz |
|---|---|
| Amperage | 2–7A |
| 4123A | Belt Width 10" · Length 12' 3" |
|---|---|
| 4126A | Belt Width 10" · Length 20' |
| Dimensions | Adjustable length x 10" / 15" belt x Adjustable height |
|---|---|
| Weight | 80–220 lb |
Included and optional equipment
Included
- 1-Phase/115 V, Electrical, 1/8HP, Variable SpeedIncluded
Options and accessories
Bipod Stand AssemblyOptional

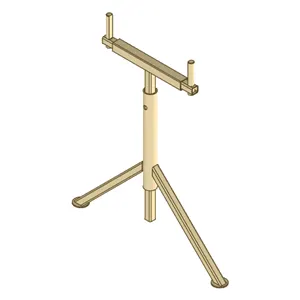

Tripod Stand AssemblyOptional- Plug-In Head Stand, adj. height, up to 36” Belt Height with Semi-Pneumatic Wheel for mobilityOptional
- Plug Tray Holders Set of (6)Optional
Options vary by configuration. Ask us which fit your operation.

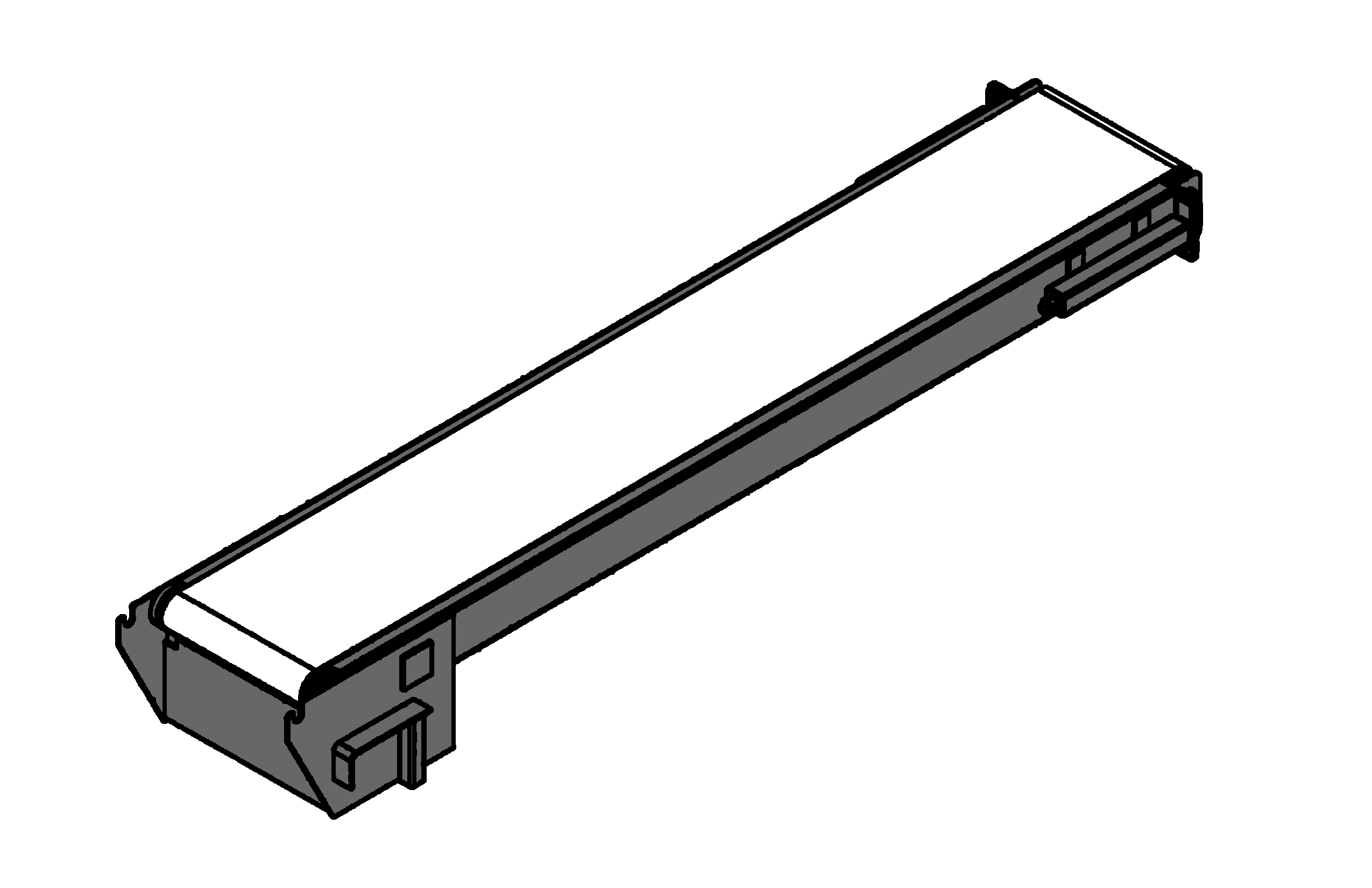

Photos and views
Warranty
1 Year Limited Warranty
Service and parts
Service / Parts through STILT.PRO
Compare conveyors
| Spec | Modular Conveyor 4100A | Trough Soil Conveyor 4316A |
|---|---|---|
| Belt Width | 10" and 15" | 16" |
| Motor Size | 1/8–1/2 HP | 2 HP (and up) |
| Belt Speed | 55 ft/min | 110 ft/min |
| Load Capacity | 100–500 lb | — |
| Dimensions | Adjustable length x 10" / 15" belt x Adjustable height | Made-to-order length x 21"W x Adjustable height |
| Weight | 80–220 lb | Application dependent |
| Power | Single Phase / 115-230V / 60 Hz | Single Phase / 208-240V / 60 Hz |
| Amperage | 2–7A | 12–14A |
| Standard Options (Included) | Standard only | Lagged head pulley, Load skirts |
| Available Options | Plug-in head stand, Tripod stand, Bolt-in slider wear plates | Cleated belt, Dust covers, Load hopper, Belt wipers and discharge hood |
| Portability | Pneumatic tires, Casters, Adjustable height stands | Pneumatic tires, Casters, Adjustable height stands |
| Operator Customizations | Standard only | Reversing operation, Turning sections, Offloading, Multiple material exits |
