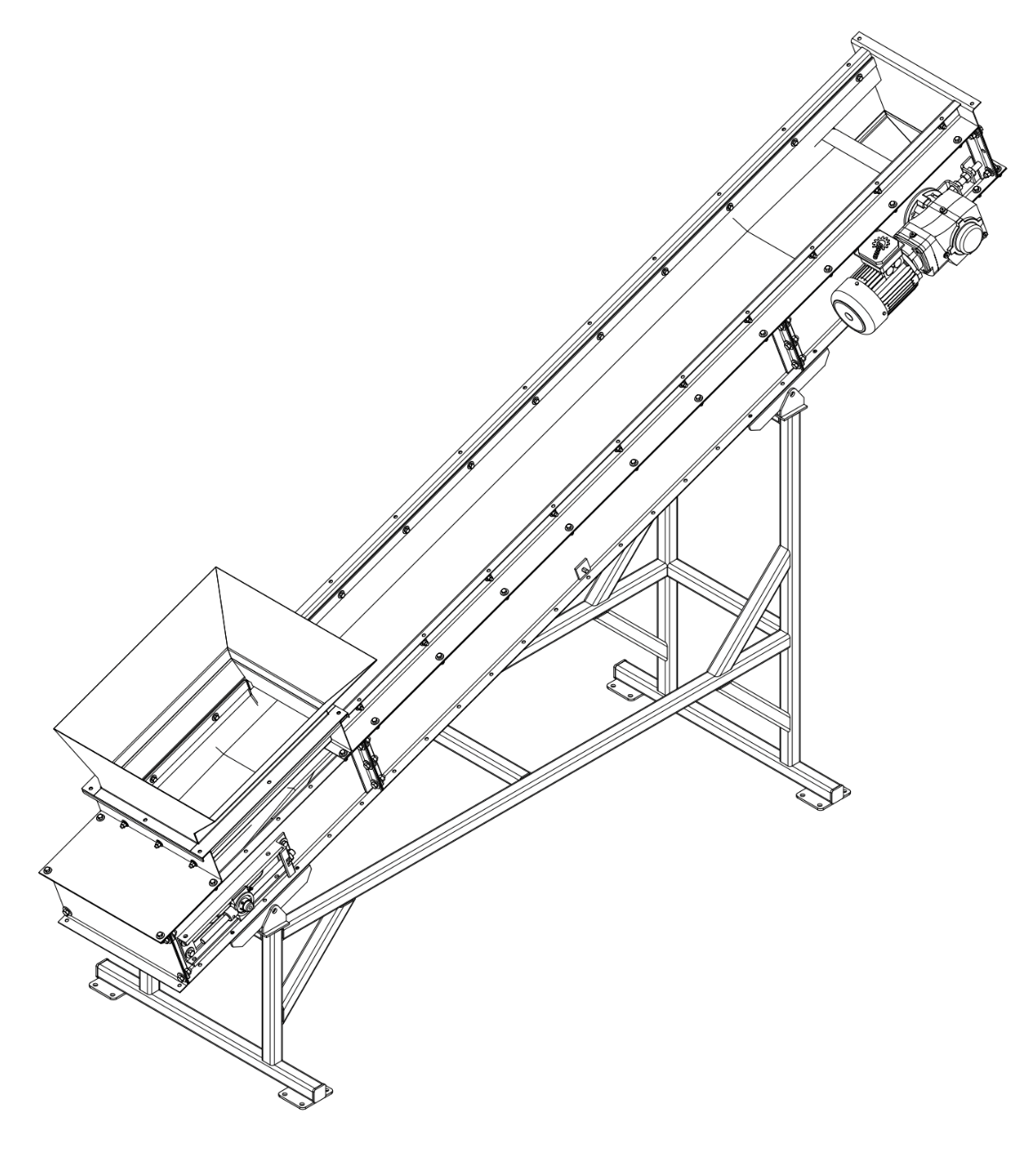

Trough Soil Conveyor
Model 4316A
A 16" trough belt conveyor for bulk soil, made to order in the length your line needs. Lagged head pulley and load skirts are standard; cleated belt, dust covers, load hopper and discharge hood are available.
- Belt Width
- 16"
- Motor Size
- 2 HP (and up)
- Belt Speed
- 110 ft/min
- Production Rate
- 50 cu yd/hr
Key features
- Slider bed construction is standard, with roller bed optional
- Manual motor starter switch & self-cleaning tail pulley
- Combine multiple conveyors for transporting soil long distances
- Mobility options, including casters, pneumatic, or semi-pneumatic wheels are available
- Stand options include adjustable or fixed height stands
How it works
Conveyors serve as a semi-autonomous way to move pots, flats, and other material. These machines can be customized to fit your operation and reduce the effort required from your employees.
Greenhouse and nursery conveyors are an excellent solution for automating laborious tasks such as transportation and plant shifting. These machines can help you reduce labor costs and production times, making them perfect for your greenhouse needs.
Specifications
| Belt Width | 16" |
|---|---|
| Motor Size | 2 HP (and up) |
| Belt Speed | 110 ft/min |
| Production Rate | 50 cu yd/hr |
| Phase / Voltage / Frequency | Single Phase / 208-240V / 60 Hz |
|---|---|
| Amperage | 12–14A |
| Dimensions | Made-to-order length x 21"W x Adjustable height |
|---|---|
| Weight | Application dependent |
Included and optional equipment
Electrical Options
- 2HP Controller - Modular Conveyor, Single Phase / 208-240VOptional
- 1.5HP Controller - Modular Conveyor, Single Phase / 110VOptional
Options and accessories

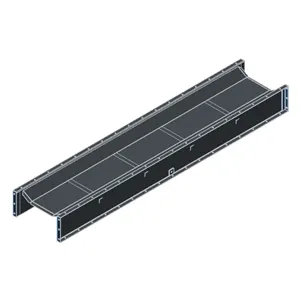

- Intermediate Trough Conveyor Section, 10ft 6inOptional
Intermediate Trough Conveyor Section, 8ft 6inOptional- Trough Conveyor Support StandOptional
- SINGLE 16 SWIVEL CASTER AND 20 PNEUMATIC TOWABLE 3 WHEEL WAGON KITOptional
- 2 YD Easy Load HopperOptional
Options vary by configuration. Ask us which fit your operation.
Photos and views
Warranty
1 Year Limited Warranty
Service and parts
Service / Parts through STILT.PRO
Compare conveyors
| Spec | Modular Conveyor 4100A | Trough Soil Conveyor 4316A |
|---|---|---|
| Belt Width | 10" and 15" | 16" |
| Motor Size | 1/8–1/2 HP | 2 HP (and up) |
| Belt Speed | 55 ft/min | 110 ft/min |
| Load Capacity | 100–500 lb | — |
| Dimensions | Adjustable length x 10" / 15" belt x Adjustable height | Made-to-order length x 21"W x Adjustable height |
| Weight | 80–220 lb | Application dependent |
| Power | Single Phase / 115-230V / 60 Hz | Single Phase / 208-240V / 60 Hz |
| Amperage | 2–7A | 12–14A |
| Standard Options (Included) | Standard only | Lagged head pulley, Load skirts |
| Available Options | Plug-in head stand, Tripod stand, Bolt-in slider wear plates | Cleated belt, Dust covers, Load hopper, Belt wipers and discharge hood |
| Portability | Pneumatic tires, Casters, Adjustable height stands | Pneumatic tires, Casters, Adjustable height stands |
| Operator Customizations | Standard only | Reversing operation, Turning sections, Offloading, Multiple material exits |
