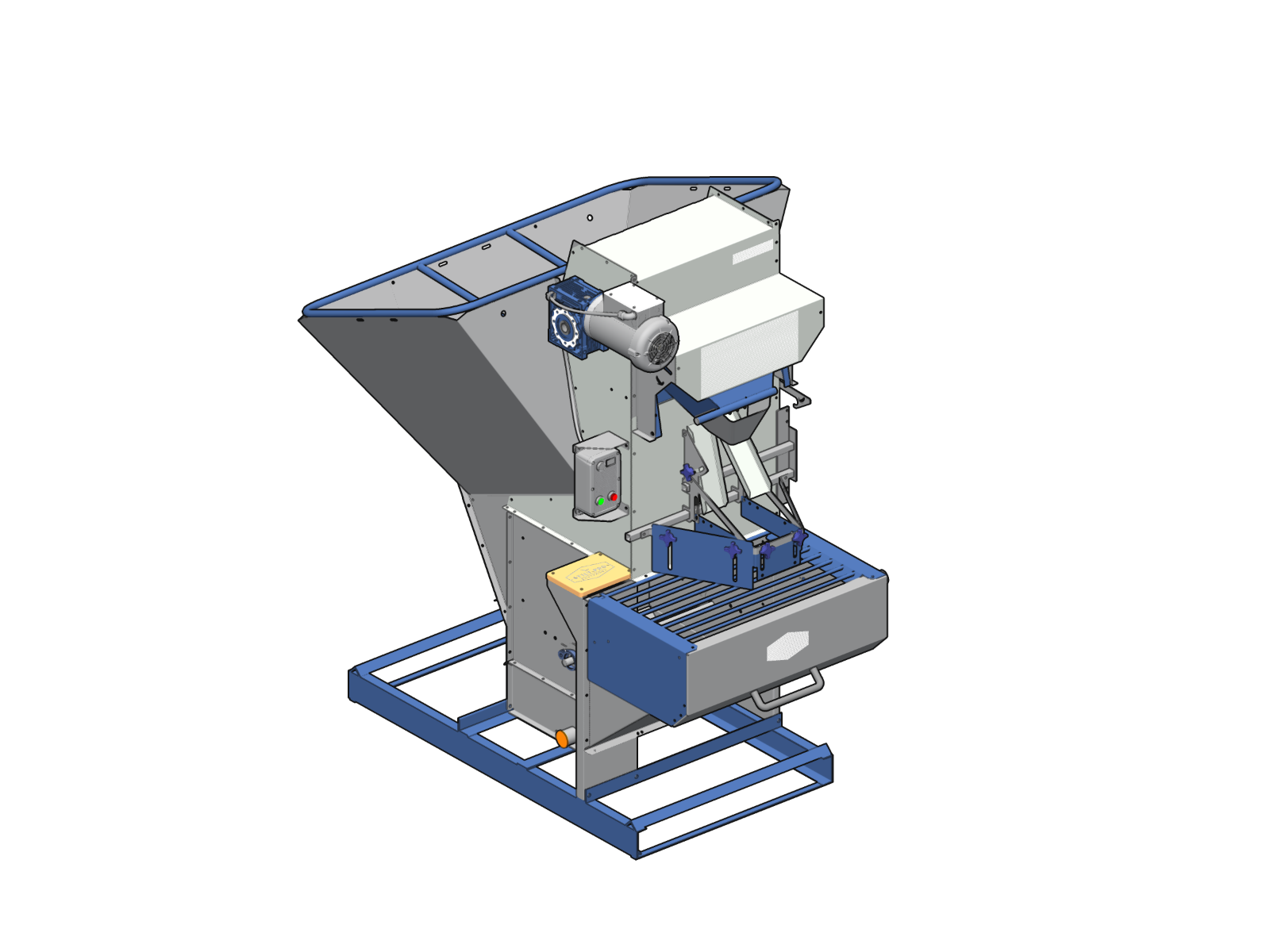

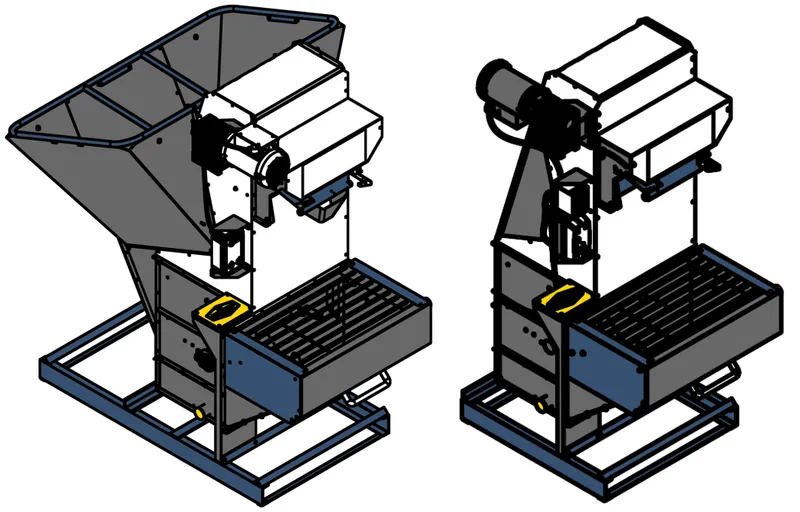

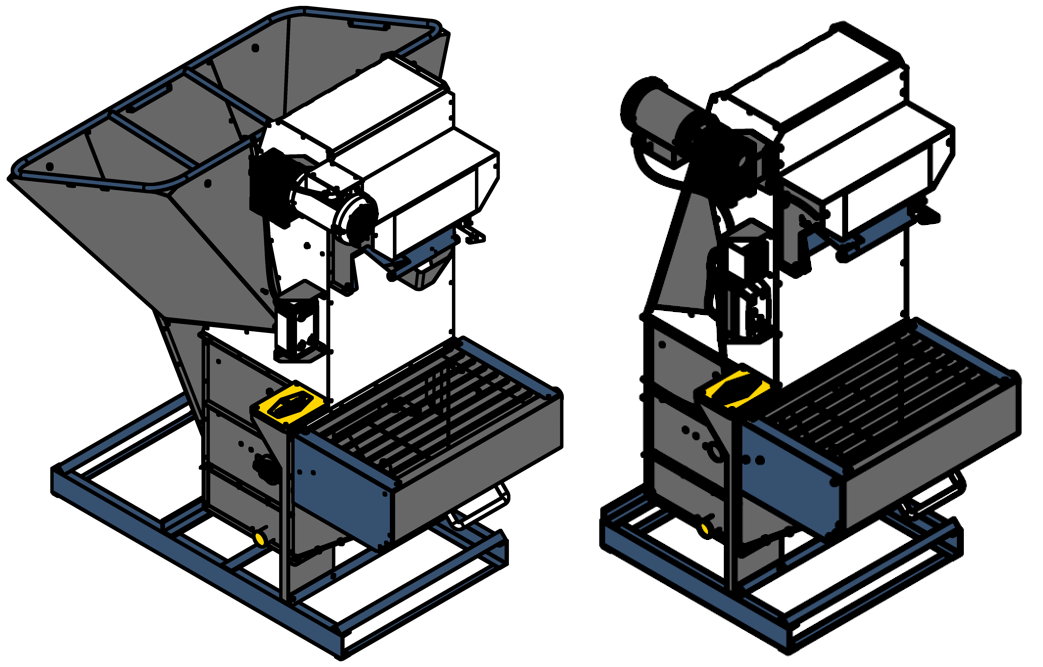

A-Line Filler
Model 5110A
The A-Line is our entry filler, sized for a 1 to 3 person crew. An open front accepts flats and containers up to 20" tall, and the adjustable material flow outlet lets one operator control fill rate.
- Hopper Capacity
- 1 or 1/3 cu yd
- Crew Size
- 1–3 people
- Production Rate
- 300 flats/hr
- Material Flow
- 12 gal/min
Key features
- Advanced soil feeding for greater capacity
- Variable filling speed to match your production requirements
- Versatile, fills flats, pots and baskets
- Recycles and reuses excess potting media
- Steep slopes on hopper for better soil feeding
How it works
Fillers operate by loading your soil mix into the machine through the hopper. The machine begins to fill flats and trays from the discharge opening. Once flats are filled, replace with an empty tray.
STILT.PRO offers a variety of machines to automate the filling of your pots, flats, or other containers, reducing manual labor and increasing your efficiency. Each filler offers quiet operation, recycling of excess soil during production, variable speeds and optional add-ons to suit your operating environment.
Specifications
| Hopper Capacity | 1 or 1/3 cu yd |
|---|---|
| Crew Size | 1–3 people |
| Production Rate | 300 flats/hr |
| Material Flow | 12 gal/min |
| Production Capacity | Open front allows flats and containers up to 20" tall |
| Phase / Voltage / Frequency | Single Phase / 115V / 60 Hz |
|---|---|
| Amperage | 18A |
| Dimensions | Front load 46"D x 79"H x 35"W • Rear load 72"D x 79"H x 58"W |
|---|---|
| Weight | 600–1250 lb |
Included and optional equipment
Included

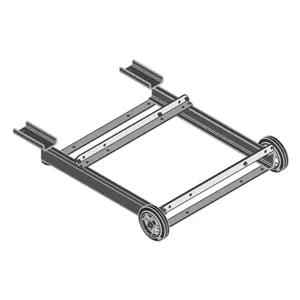

- 5105A Front Load Standard FrameIncluded

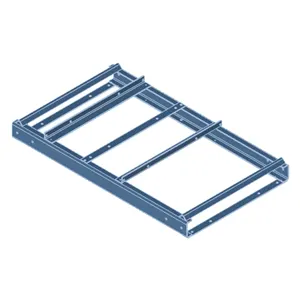

5110A Rear Load Main FrameIncluded
Options and accessories

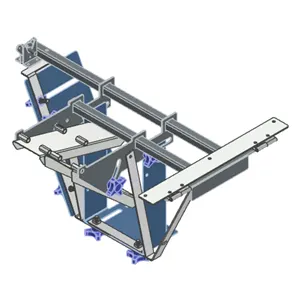

Manual Tray Filler - 12"Wide and 8" Tall ProductOptional

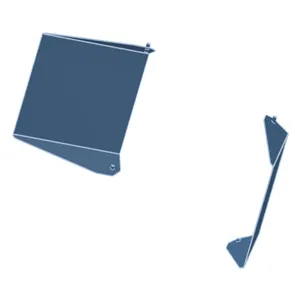

Hopper Extension Wings (72" Wide)Optional

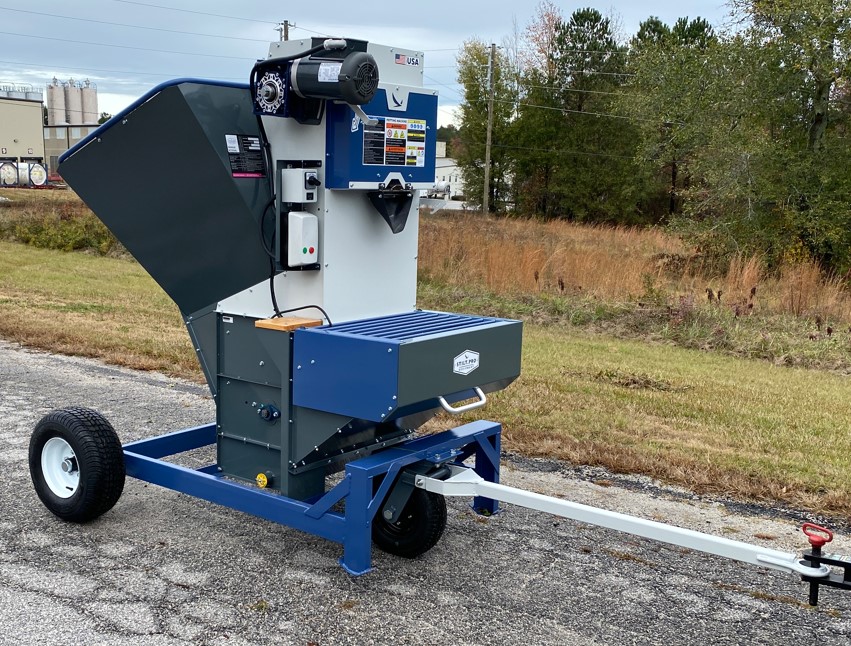

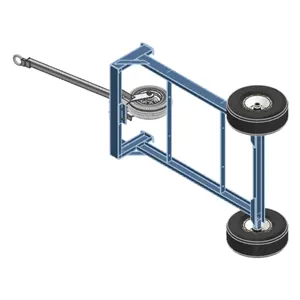

16" Swivel Caster and 20" Rear Pneumatic Towable 3 Wheel Wagon KitOptional

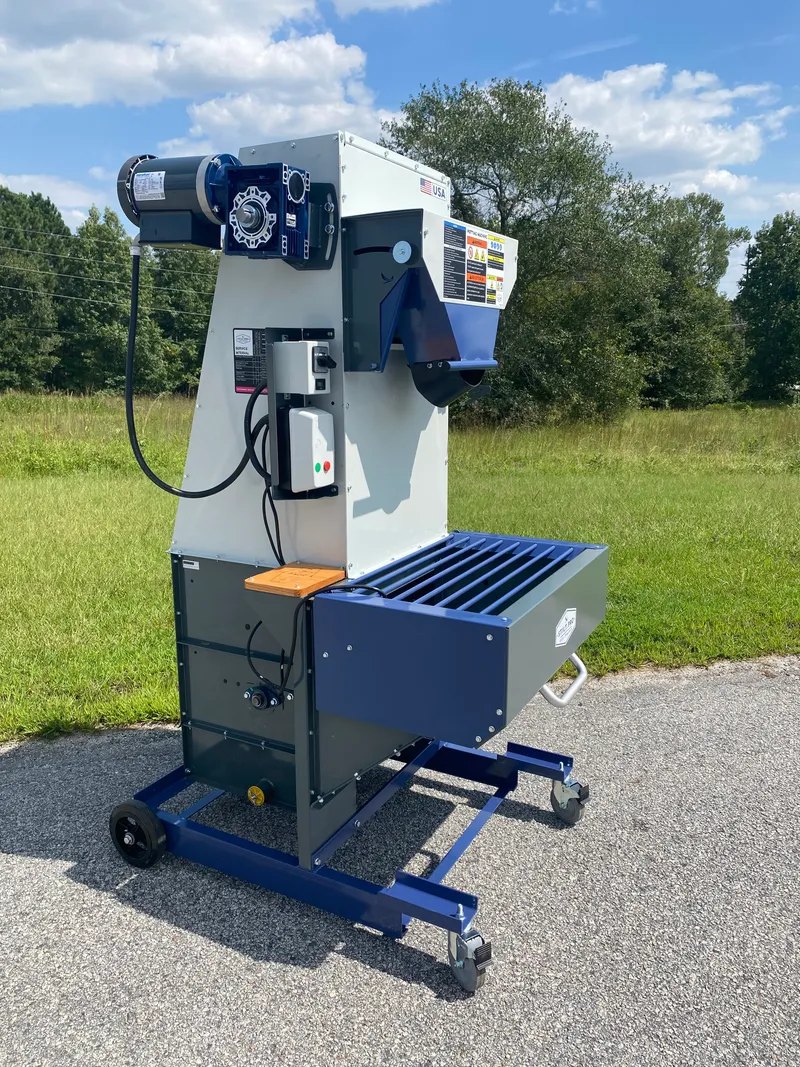

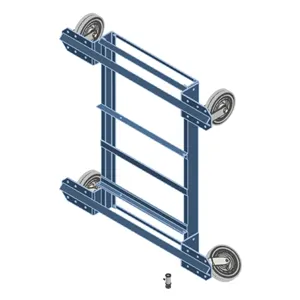

10" Caster Kit for A-LineOptional
5” and 8” Small Wheel Caster Kit for Front Load A-LineOptional- Removable 5110A Rear Load CoverOptional
- Removable 5105A Front Load CoverOptional
Options vary by configuration. Ask us which fit your operation.

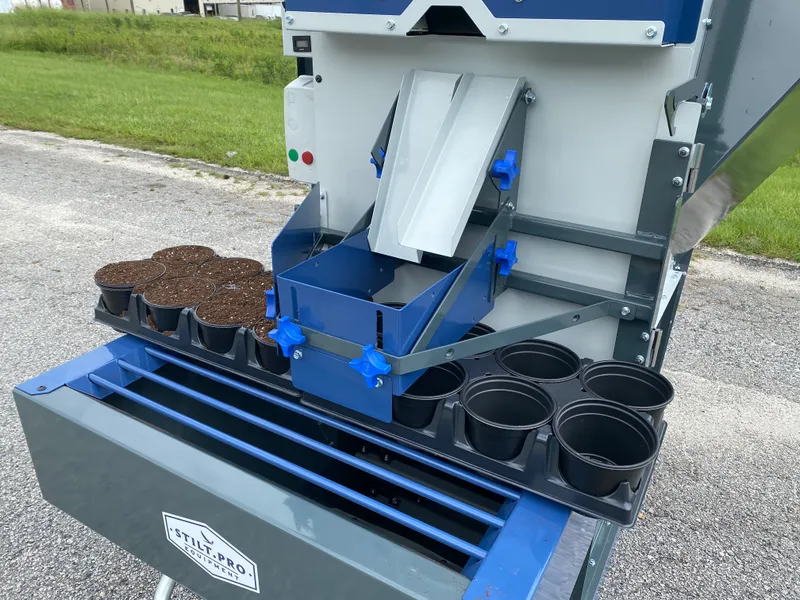

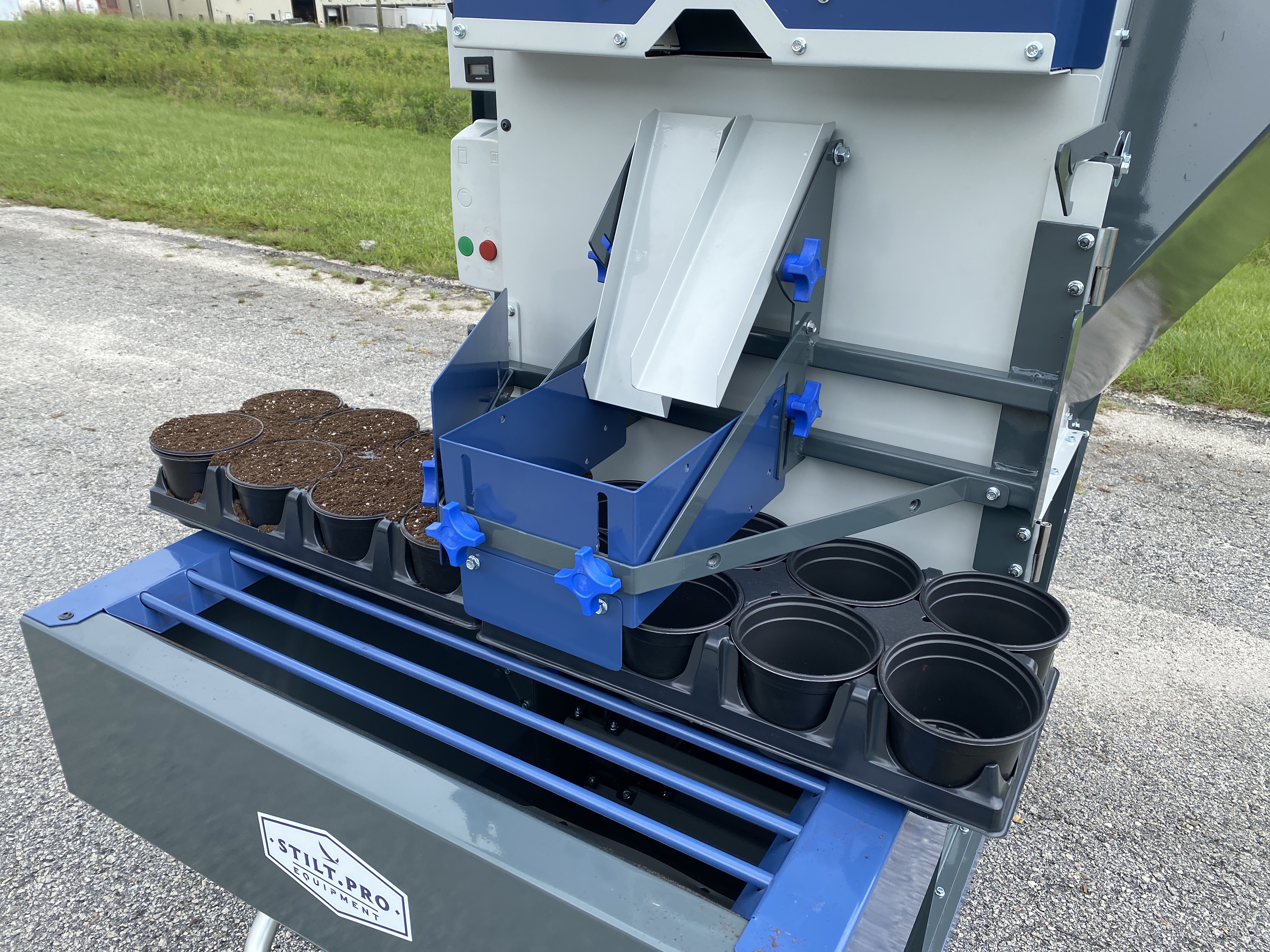

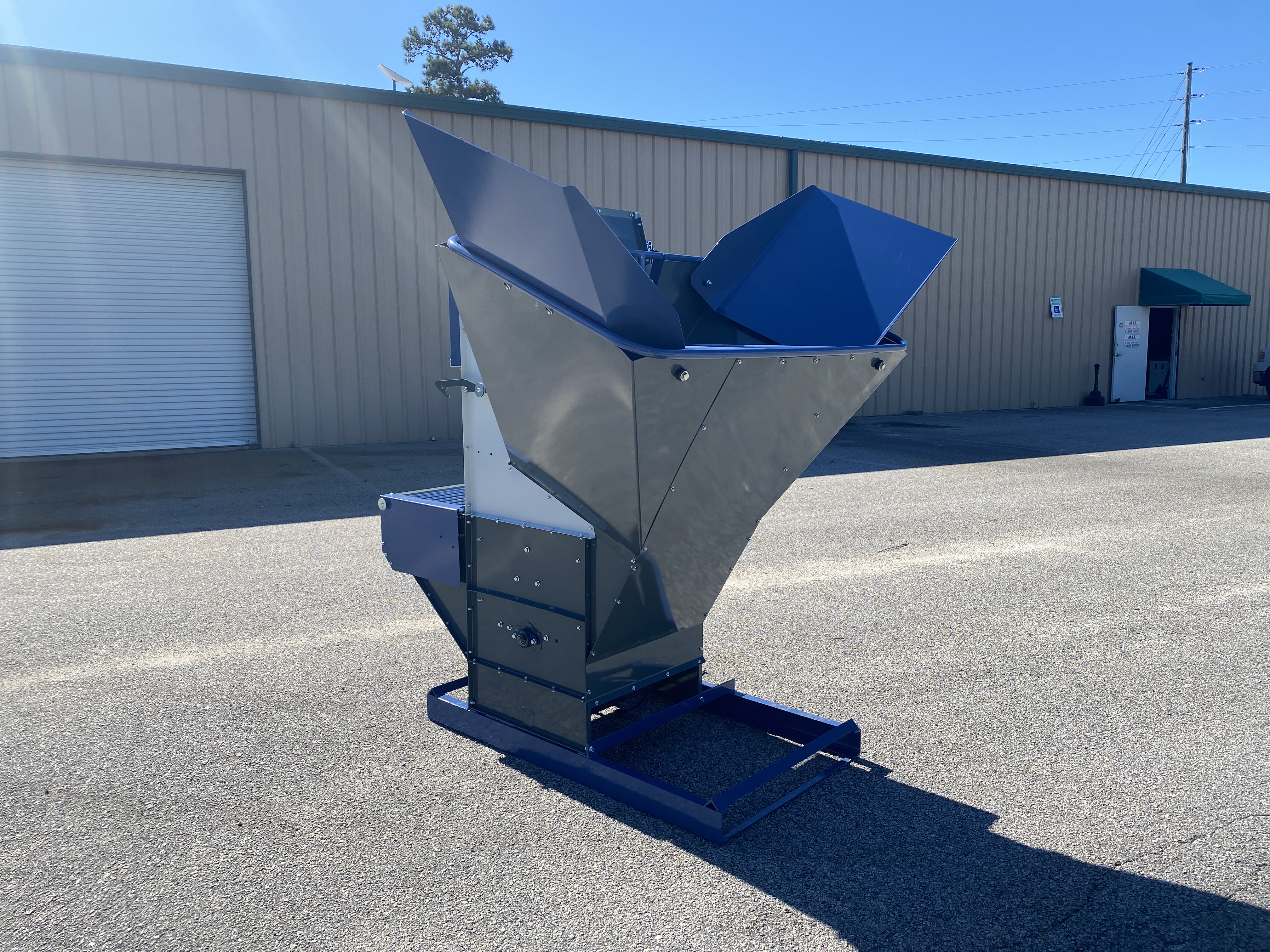

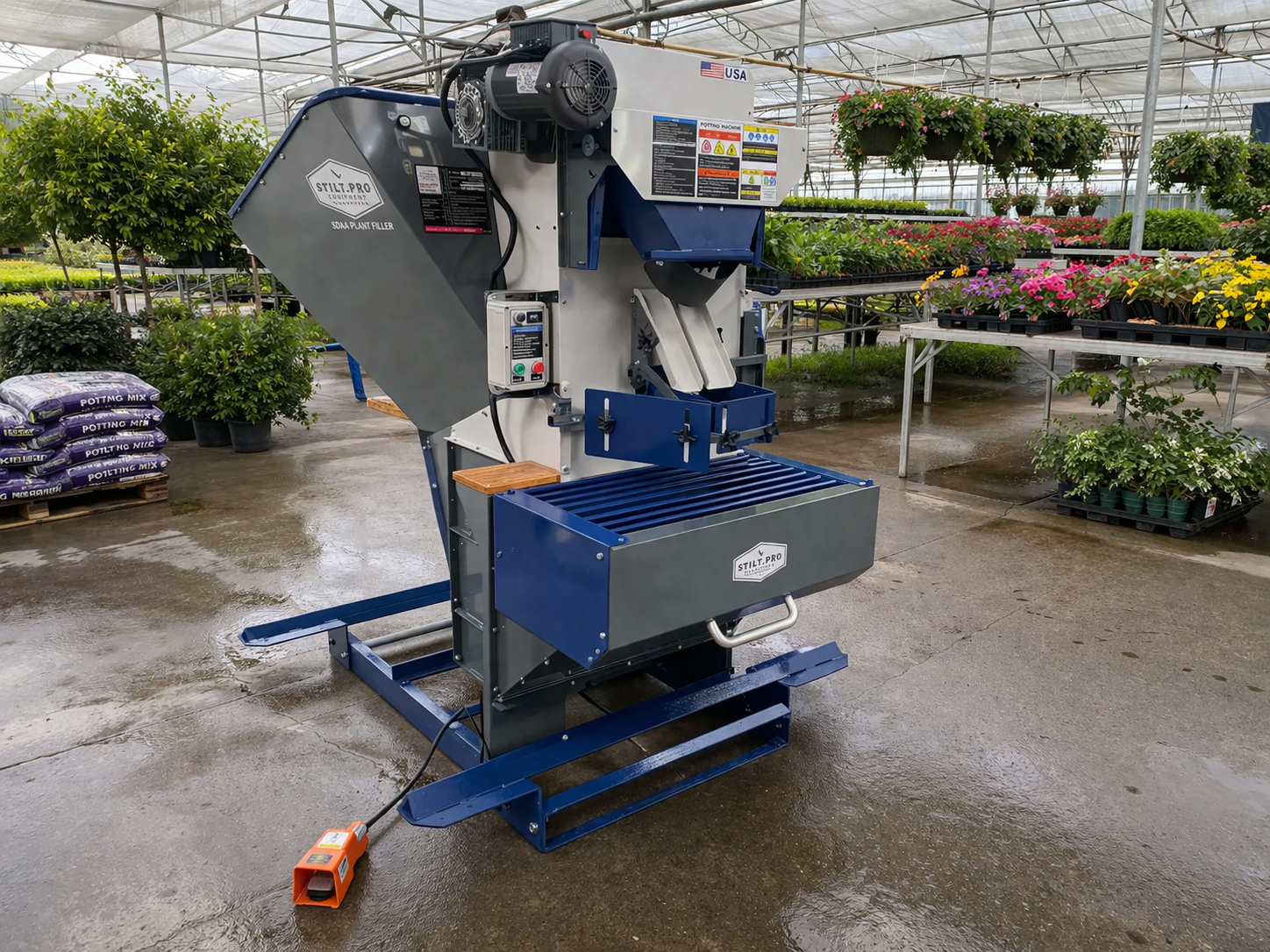

Photos and views
Videos
Warranty
3-year, unlimited-hours warranty. Ask for the complete coverage terms with your quote.
Service and parts
Service / Parts through STILT.PRO
Compare fillers
| Spec | A-Line Filler 5110A | Minor B Filler 5332B | B-Line Filler 5343B | Super B Filler 5361A | N-Line Filler 5662B |
|---|---|---|---|---|---|
| Hopper Capacity | 1 or 1/3 cu yd | 3/4 cu yd | 1 1/2 cu yd | 2 1/4 cu yd | 4 cu yd |
| Crew Size | 1–3 people | 2–5 people | 3–6 people | 5–10 people | 6–12 people |
| Production Rate | 300 flats/hr | 800 flats/hr | 1200 flats/hr | 1800 flats/hr | 2400 flats/hr |
| Material Flow | 12 gal/min | 33 gal/min | 50 gal/min | 74 gal/min | 99 gal/min |
| Max Flat Width | 12" | 12" | 18" | 22" | 18" |
| Max Container Height | 20" | 6" | 16" | 14.5" | 17.5" |
| Dimensions | Front load 46"D x 79"H x 35"W • Rear load 72"D x 79"H x 58"W | 114"L x 72"W x 62"H | 84"L x 72"W x 54"H | — | — |
| Weight | 600–1250 lb | — | 1000 lb | 2200 lb | — |
| Power | Single Phase / 115V / 60 Hz | Single Phase / 115V / 60 Hz | Single Phase / 208-240V / 60 Hz | Single Phase / 208-240V / 60 Hz | Single Phase / 208-240V / 60 Hz |
| Amperage | 18A | 20A | 20A | 20A | 28A |
| Standard Options (Included) | Adjustable material flow outlet | 2-stage power brush, Fixed speed material chain, Variable speed tray belt | 2-stage power brush, Variable speed material chain, Variable speed tray belt | 2-stage power brush, Variable speed material chain, Variable speed tray belt | 2-stage power brush, Variable speed material chain, Variable speed tray belt |
| Available Options | Manual tray filler, Hopper extension wings | Powered take-off rollers, Tray vibrator, Tray belt extensions | Powered take-off rollers, Tray vibrator, Tray belt extensions | Powered take-off rollers, Tray vibrator, Tray belt extensions | Powered take-off rollers, Tray vibrator, Tray belt extensions |
| Portability | Towable pneumatic wagon, 10" casters | Towable pneumatic tires, Casters | Towable pneumatic tires, Casters | Towable pneumatic tires, Casters | Towable pneumatic tires, Casters |
| Operator Customizations | Cover | Reversed tray belt flow direction | Reversed tray belt flow direction | Reversed tray belt flow direction | Reversed tray belt flow direction |
