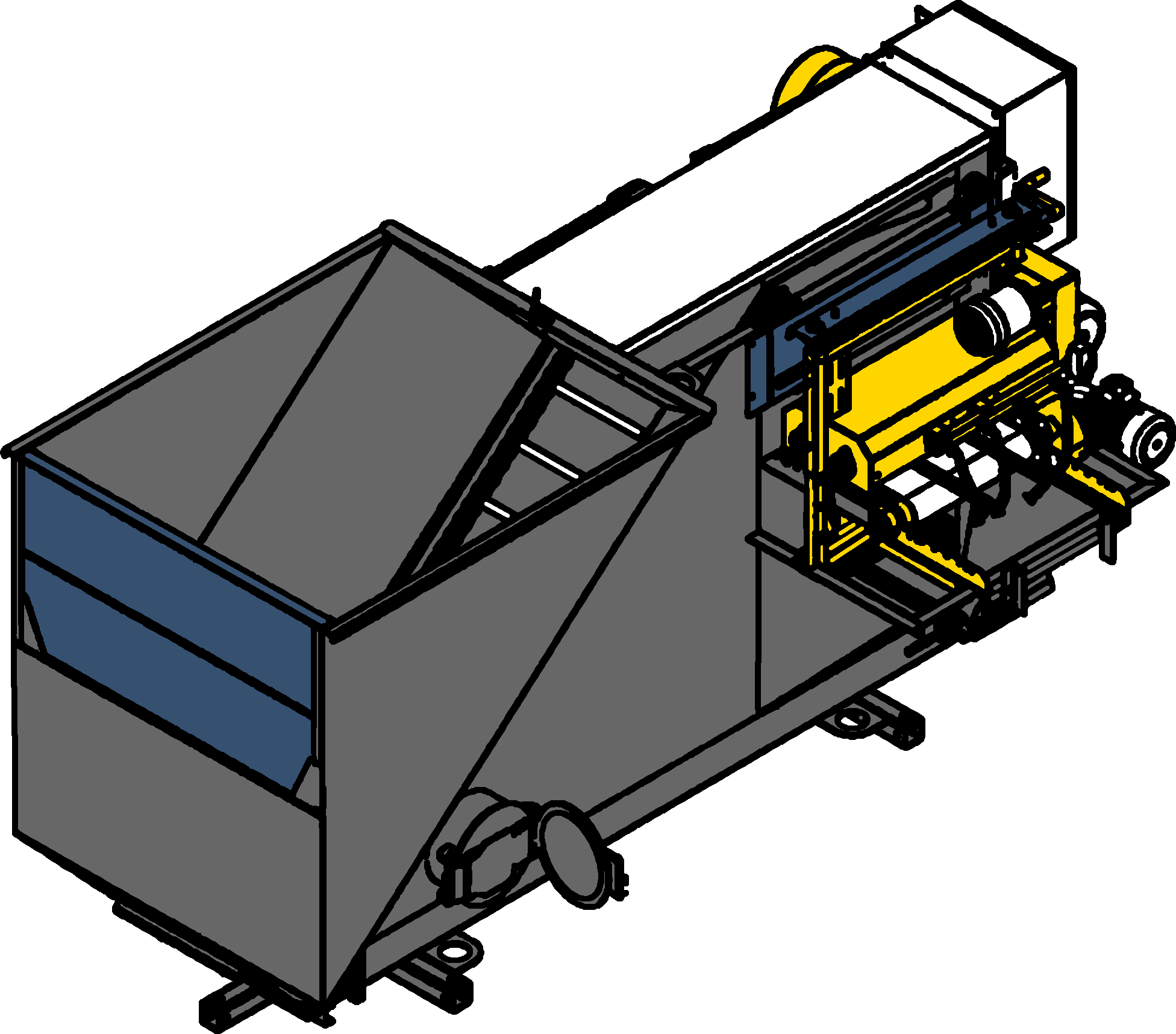

B-Line Filler 5343B

B-Line Filler

Model 5343B

The B-Line runs a 3 to 6 person crew at up to 1200 flats per hour, handling flats up to 18" wide and containers up to 16" tall on a 1.5 cubic yard hopper.

Hopper Capacity
1 1/2 cu yd
Crew Size
3–6 people
Production Rate
1200 flats/hr
Material Flow
50 gal/min
Request a quoteSpec sheet (PDF)

Key features

  • Advanced soil feeding for greater capacity
  • Variable filling speed to match your production requirements
  • Versatile, fills flats, pots and baskets
  • Recycles and reuses excess potting media
  • Steep slopes on hopper for better soil feeding

How it works

Fillers operate by loading your soil mix into the machine through the hopper. The machine begins to fill flats and trays from the discharge opening. Once flats are filled, replace with an empty tray.

STILT.PRO offers a variety of machines to automate the filling of your pots, flats, or other containers, reducing manual labor and increasing your efficiency. Each filler offers quiet operation, recycling of excess soil during production, variable speeds and optional add-ons to suit your operating environment.

Specifications

Performance
Hopper Capacity1 1/2 cu yd
Crew Size3–6 people
Production Rate1200 flats/hr
Material Flow50 gal/min
Production CapacityFlats up to 18" wide / containers up to 16" tall
Power Requirements
Phase / Voltage / FrequencySingle Phase / 208-240V / 60 Hz
Amperage20A
Size and Weight
Dimensions84"L x 72"W x 54"H
Weight1000 lb

Included and optional equipment

Electrical Options

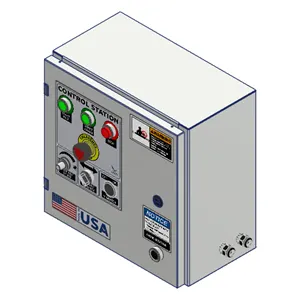

  • B-Line Controller, 1P, 220V, 24V ControlOptional

Options and accessories

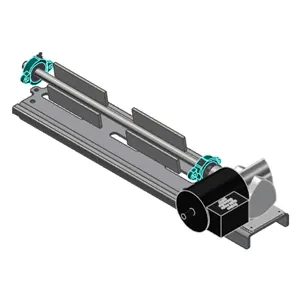

  • POWER TAKE-OFF ROLL ASSEMBLYOptional

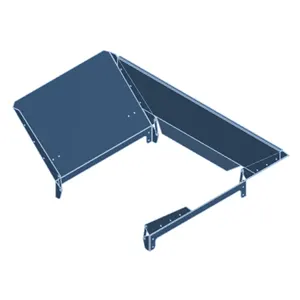

  • Hopper Extension Wings (72 in Wide), B-LINEOptional
  • Motorized Vibrator Under Tray BeltOptional
  • Caster wheels, 2 rigid and 2 swivelOptional
  • Pneumatic Wheel Assembly with dual steering and hitchOptional
  • Tray Belt Extension of 48", with support stand, infeed, B LineOptional

Options vary by configuration. Ask us which fit your operation.

Photos and views

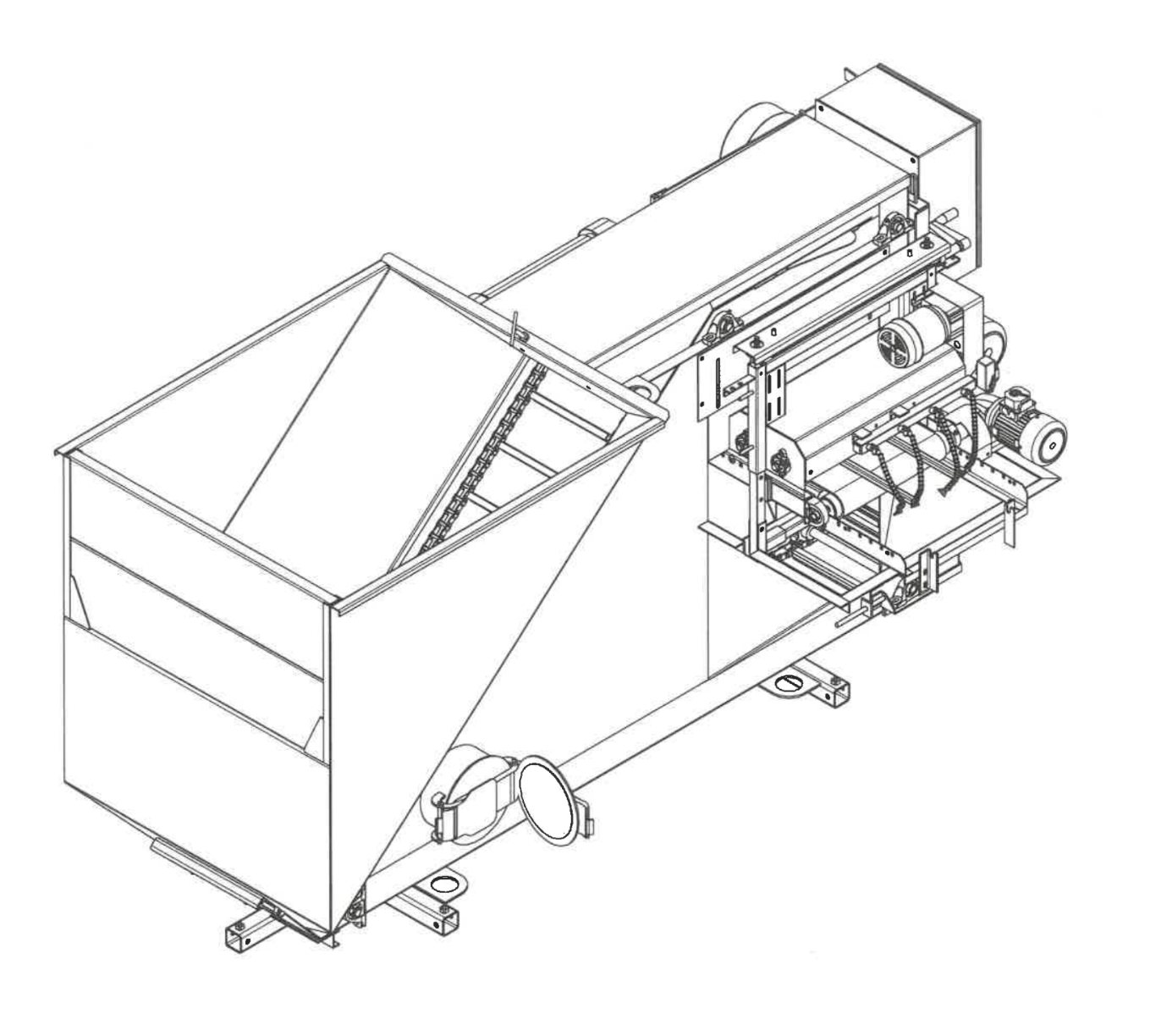

B-Line Filler in use

Warranty

1 Year Limited Warranty

Service and parts

Service / Parts through STILT.PRO

Compare fillers

SpecA-Line Filler
5110A		Minor B Filler
5332B		B-Line Filler
5343B		Super B Filler
5361A		N-Line Filler
5662B
Hopper Capacity1 or 1/3 cu yd3/4 cu yd1 1/2 cu yd2 1/4 cu yd4 cu yd
Crew Size1–3 people2–5 people3–6 people5–10 people6–12 people
Production Rate300 flats/hr800 flats/hr1200 flats/hr1800 flats/hr2400 flats/hr
Material Flow12 gal/min33 gal/min50 gal/min74 gal/min99 gal/min
Max Flat Width12"12"18"22"18"
Max Container Height20"6"16"14.5"17.5"
DimensionsFront load 46"D x 79"H x 35"W • Rear load 72"D x 79"H x 58"W114"L x 72"W x 62"H84"L x 72"W x 54"H——
Weight600–1250 lb—1000 lb2200 lb—
PowerSingle Phase / 115V / 60 HzSingle Phase / 115V / 60 HzSingle Phase / 208-240V / 60 HzSingle Phase / 208-240V / 60 HzSingle Phase / 208-240V / 60 Hz
Amperage18A20A20A20A28A
Standard Options (Included)Adjustable material flow outlet2-stage power brush, Fixed speed material chain, Variable speed tray belt2-stage power brush, Variable speed material chain, Variable speed tray belt2-stage power brush, Variable speed material chain, Variable speed tray belt2-stage power brush, Variable speed material chain, Variable speed tray belt
Available OptionsManual tray filler, Hopper extension wingsPowered take-off rollers, Tray vibrator, Tray belt extensionsPowered take-off rollers, Tray vibrator, Tray belt extensionsPowered take-off rollers, Tray vibrator, Tray belt extensionsPowered take-off rollers, Tray vibrator, Tray belt extensions
PortabilityTowable pneumatic wagon, 10" castersTowable pneumatic tires, CastersTowable pneumatic tires, CastersTowable pneumatic tires, CastersTowable pneumatic tires, Casters
Operator CustomizationsCoverReversed tray belt flow directionReversed tray belt flow directionReversed tray belt flow directionReversed tray belt flow direction

Request a quote

Tell us about your operation and we'll put together a quote for the B-Line Filler. Prefer to talk? Call (706) 312-8410.
