Minor B Filler
Model 5332B
The Minor B suits a 2 to 5 person crew filling flats up to 12" wide and containers up to 6" tall, at up to 800 flats per hour.
- Hopper Capacity
- 3/4 cu yd
- Crew Size
- 2–5 people
- Production Rate
- 800 flats/hr
- Material Flow
- 33 gal/min
Key features
- Advanced soil feeding for greater capacity
- Variable filling speed to match your production requirements
- Versatile, fills flats, pots and baskets
- Recycles and reuses excess potting media
- Steep slopes on hopper for better soil feeding
How it works
Fillers operate by loading your soil mix into the machine through the hopper. The machine begins to fill flats and trays from the discharge opening. Once flats are filled, replace with an empty tray.
STILT.PRO offers a variety of machines to automate the filling of your pots, flats, or other containers, reducing manual labor and increasing your efficiency. Each filler offers quiet operation, recycling of excess soil during production, variable speeds and optional add-ons to suit your operating environment.
Specifications
| Hopper Capacity | 3/4 cu yd |
|---|---|
| Crew Size | 2–5 people |
| Production Rate | 800 flats/hr |
| Material Flow | 33 gal/min |
| Production Capacity | Flats up to 12" wide / containers up to 6" tall |
| Phase / Voltage / Frequency | Single Phase / 115V / 60 Hz |
|---|---|
| Amperage | 20A |
| Dimensions | 114"L x 72"W x 62"H |
|---|---|
| Weight |
Included and optional equipment
Electrical Options

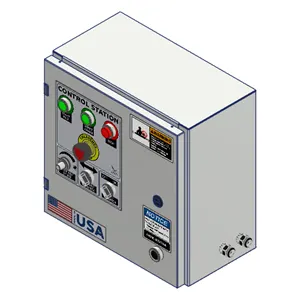

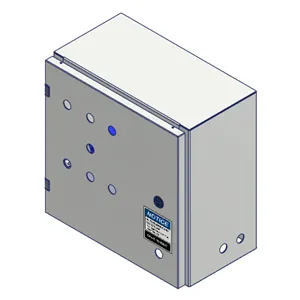

Minor B Controller, 1P, 110V, 24V ControlOptional- Minor B Controller, 1P, 220V, 24V ControlOptional
Minor B Controller, 1P, 110V, Vibrator, 24V ControlOptional
Options and accessories
MINOR B - Motorized Vibrator Under Tray BeltOptional

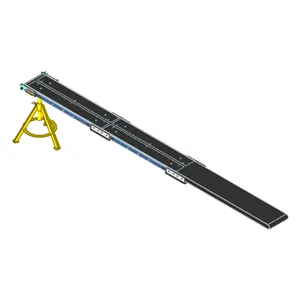

Minor B, Tray Belt Extension of 96”, with support stand, infeedOptional

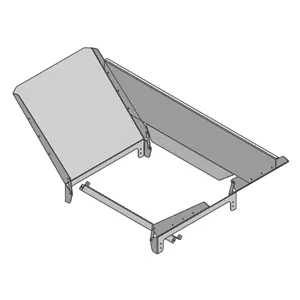

Minor B - 78' Hopper WingsOptional- Caster Set, 6” diameter, (2) rigid and (2) swivel-loc for Minor B 1.25" Tube ThicknessOptional

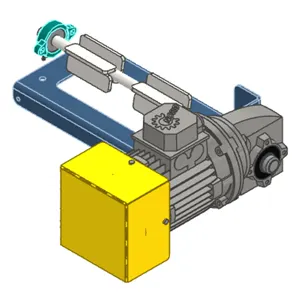

POWER TAKE-OFF ROLL ASSEMBLYOptional
Options vary by configuration. Ask us which fit your operation.

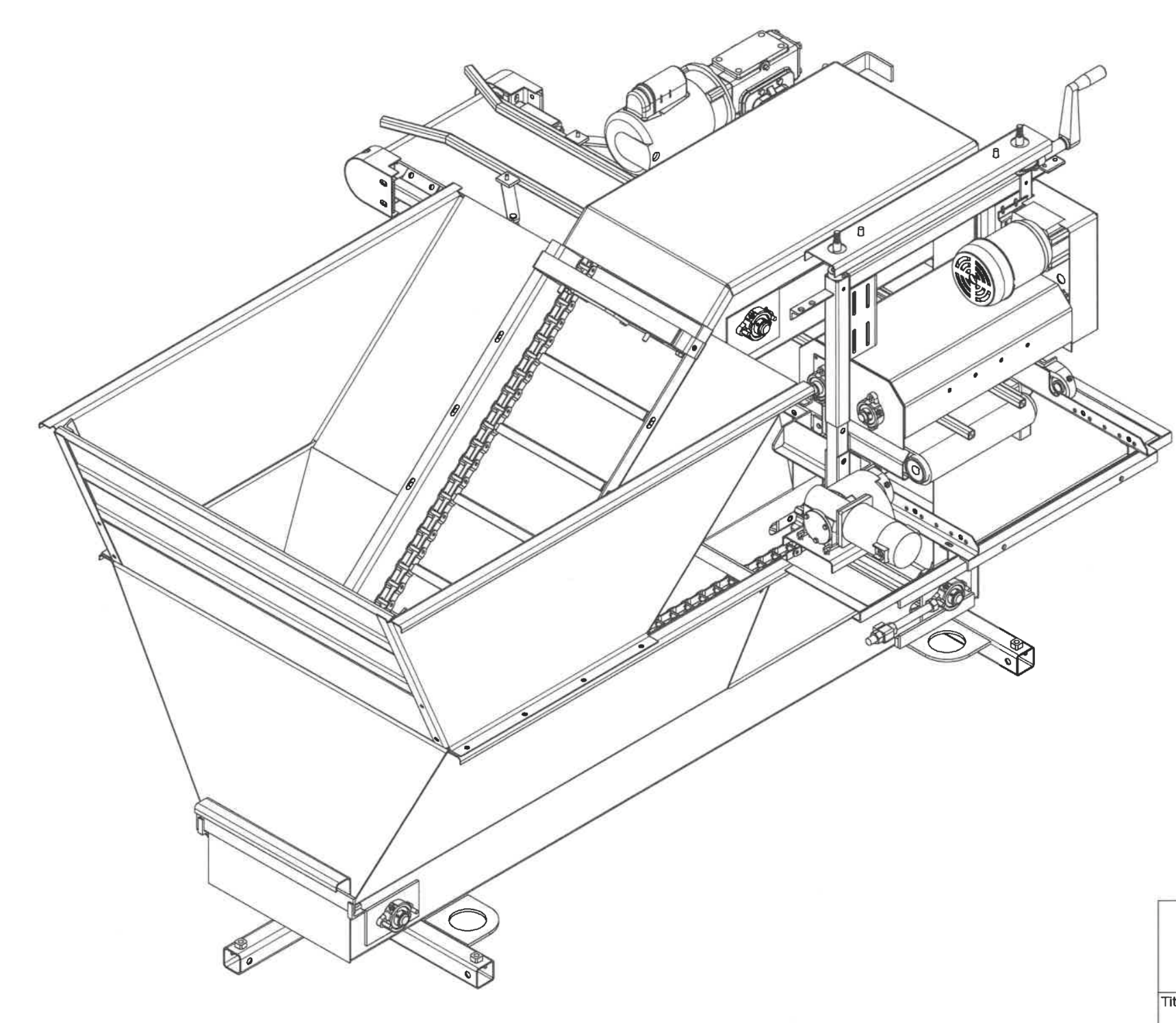

Photos and views
Warranty
1 Year Limited Warranty
Service and parts
Service / Parts through STILT.PRO
Compare fillers
| Spec | A-Line Filler 5110A | Minor B Filler 5332B | B-Line Filler 5343B | Super B Filler 5361A | N-Line Filler 5662B |
|---|---|---|---|---|---|
| Hopper Capacity | 1 or 1/3 cu yd | 3/4 cu yd | 1 1/2 cu yd | 2 1/4 cu yd | 4 cu yd |
| Crew Size | 1–3 people | 2–5 people | 3–6 people | 5–10 people | 6–12 people |
| Production Rate | 300 flats/hr | 800 flats/hr | 1200 flats/hr | 1800 flats/hr | 2400 flats/hr |
| Material Flow | 12 gal/min | 33 gal/min | 50 gal/min | 74 gal/min | 99 gal/min |
| Max Flat Width | 12" | 12" | 18" | 22" | 18" |
| Max Container Height | 20" | 6" | 16" | 14.5" | 17.5" |
| Dimensions | Front load 46"D x 79"H x 35"W • Rear load 72"D x 79"H x 58"W | 114"L x 72"W x 62"H | 84"L x 72"W x 54"H | — | — |
| Weight | 600–1250 lb | — | 1000 lb | 2200 lb | — |
| Power | Single Phase / 115V / 60 Hz | Single Phase / 115V / 60 Hz | Single Phase / 208-240V / 60 Hz | Single Phase / 208-240V / 60 Hz | Single Phase / 208-240V / 60 Hz |
| Amperage | 18A | 20A | 20A | 20A | 28A |
| Standard Options (Included) | Adjustable material flow outlet | 2-stage power brush, Fixed speed material chain, Variable speed tray belt | 2-stage power brush, Variable speed material chain, Variable speed tray belt | 2-stage power brush, Variable speed material chain, Variable speed tray belt | 2-stage power brush, Variable speed material chain, Variable speed tray belt |
| Available Options | Manual tray filler, Hopper extension wings | Powered take-off rollers, Tray vibrator, Tray belt extensions | Powered take-off rollers, Tray vibrator, Tray belt extensions | Powered take-off rollers, Tray vibrator, Tray belt extensions | Powered take-off rollers, Tray vibrator, Tray belt extensions |
| Portability | Towable pneumatic wagon, 10" casters | Towable pneumatic tires, Casters | Towable pneumatic tires, Casters | Towable pneumatic tires, Casters | Towable pneumatic tires, Casters |
| Operator Customizations | Cover | Reversed tray belt flow direction | Reversed tray belt flow direction | Reversed tray belt flow direction | Reversed tray belt flow direction |
